Product details

Description

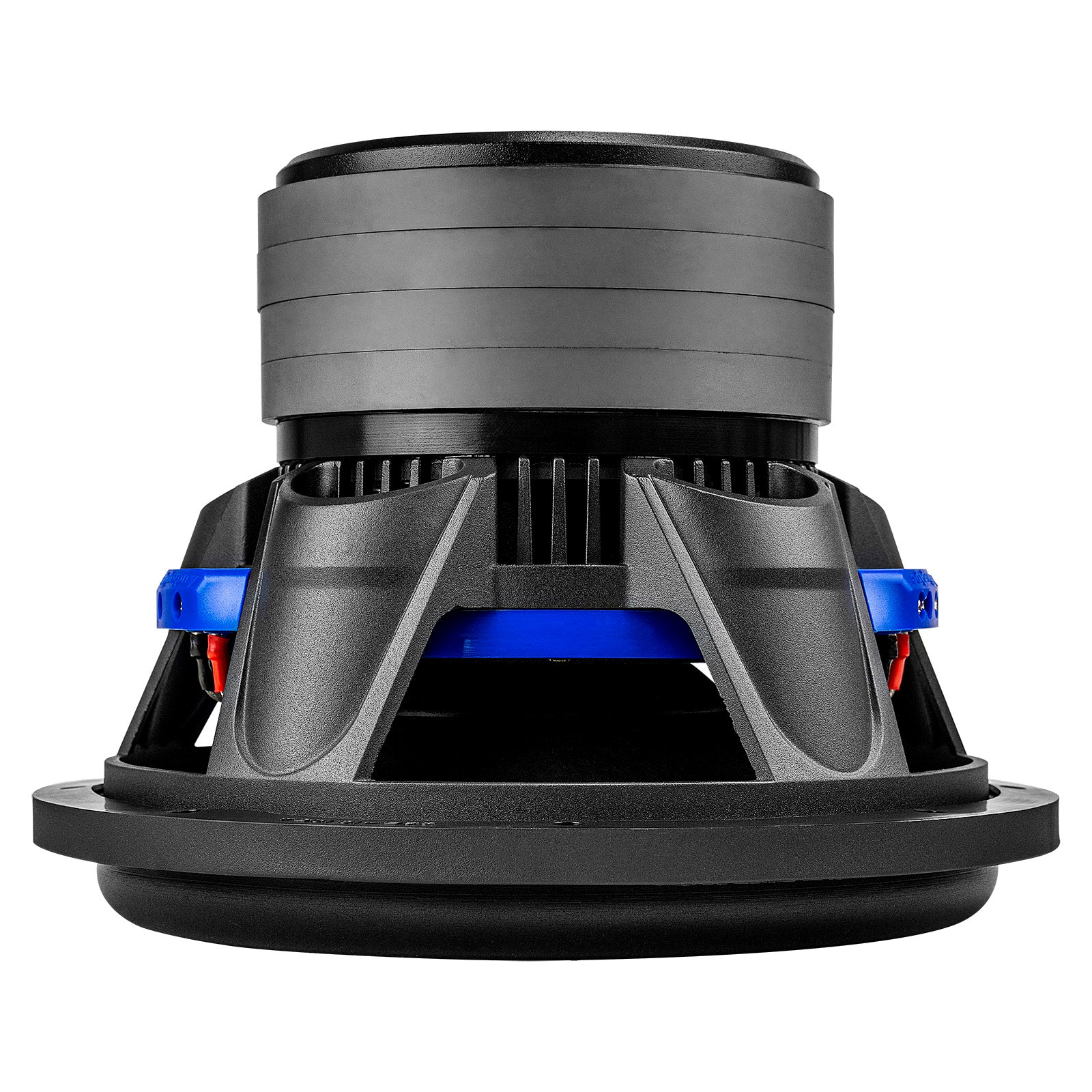

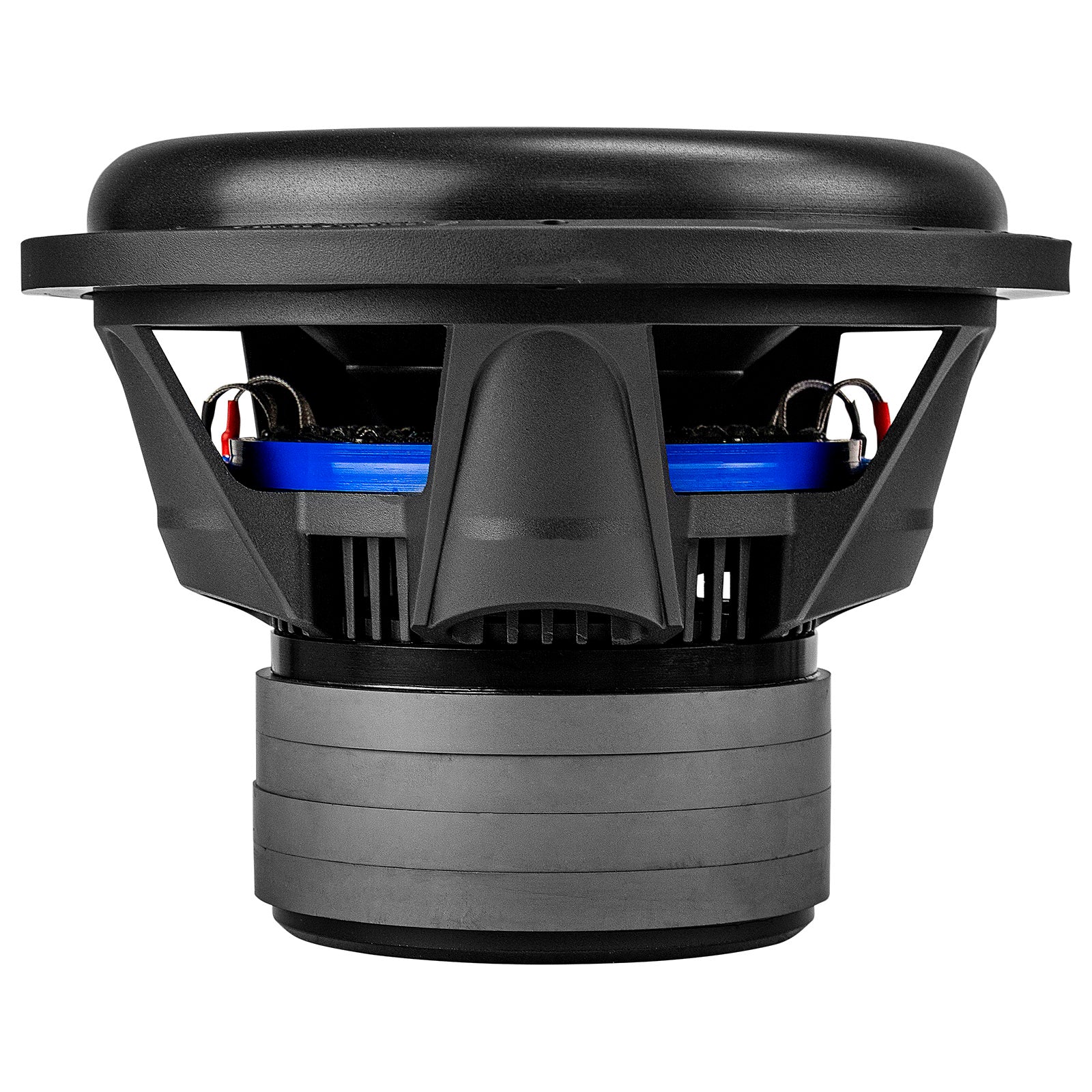

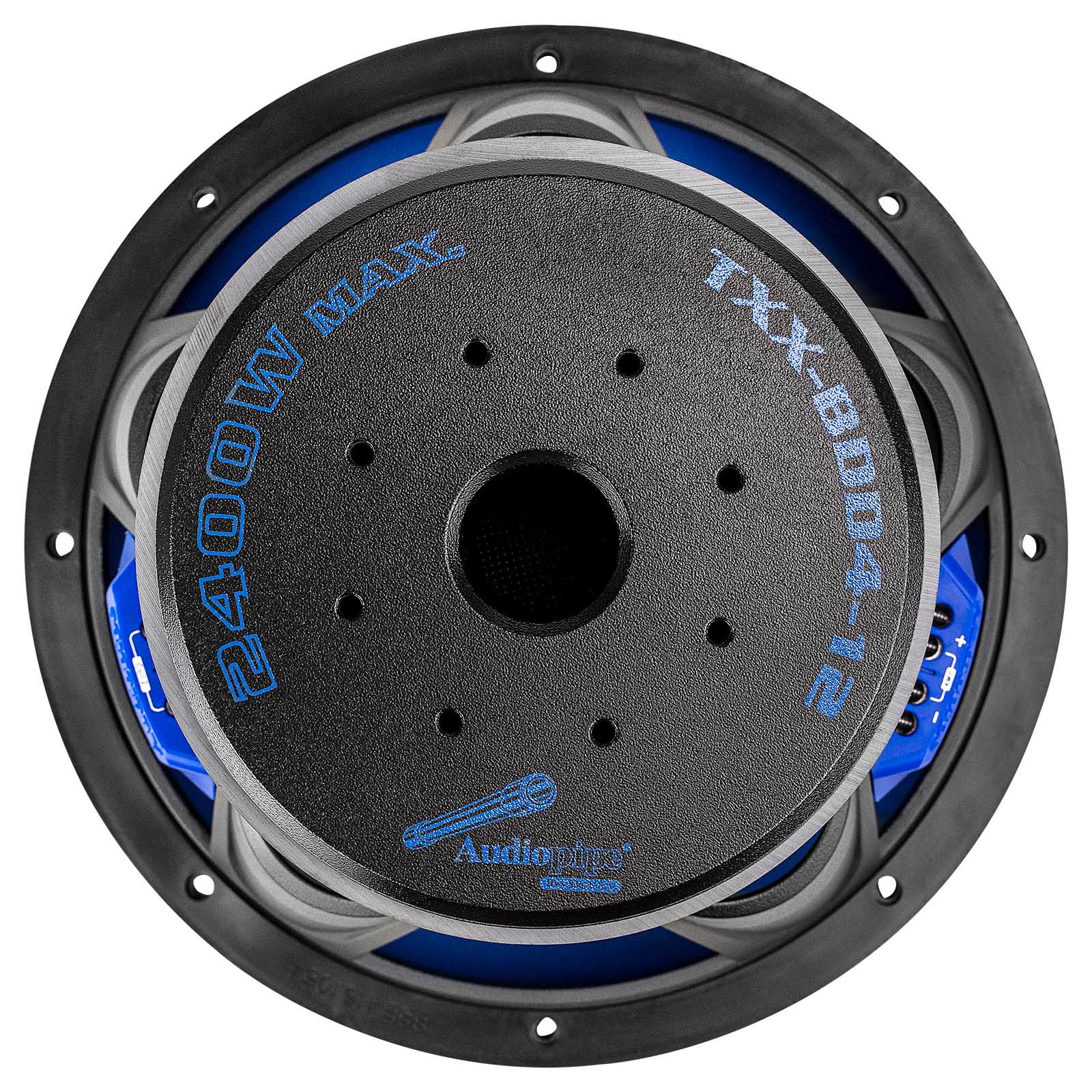

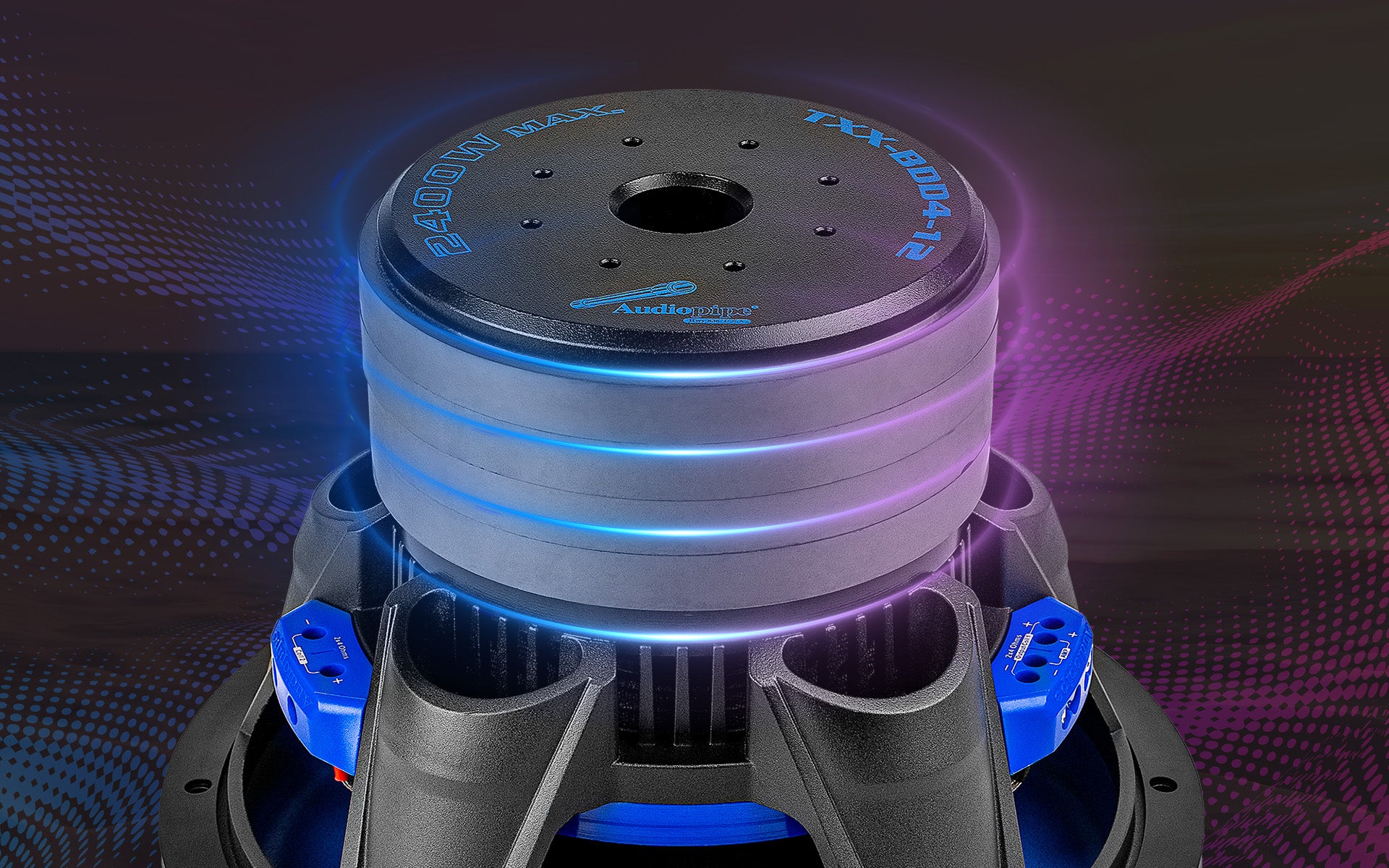

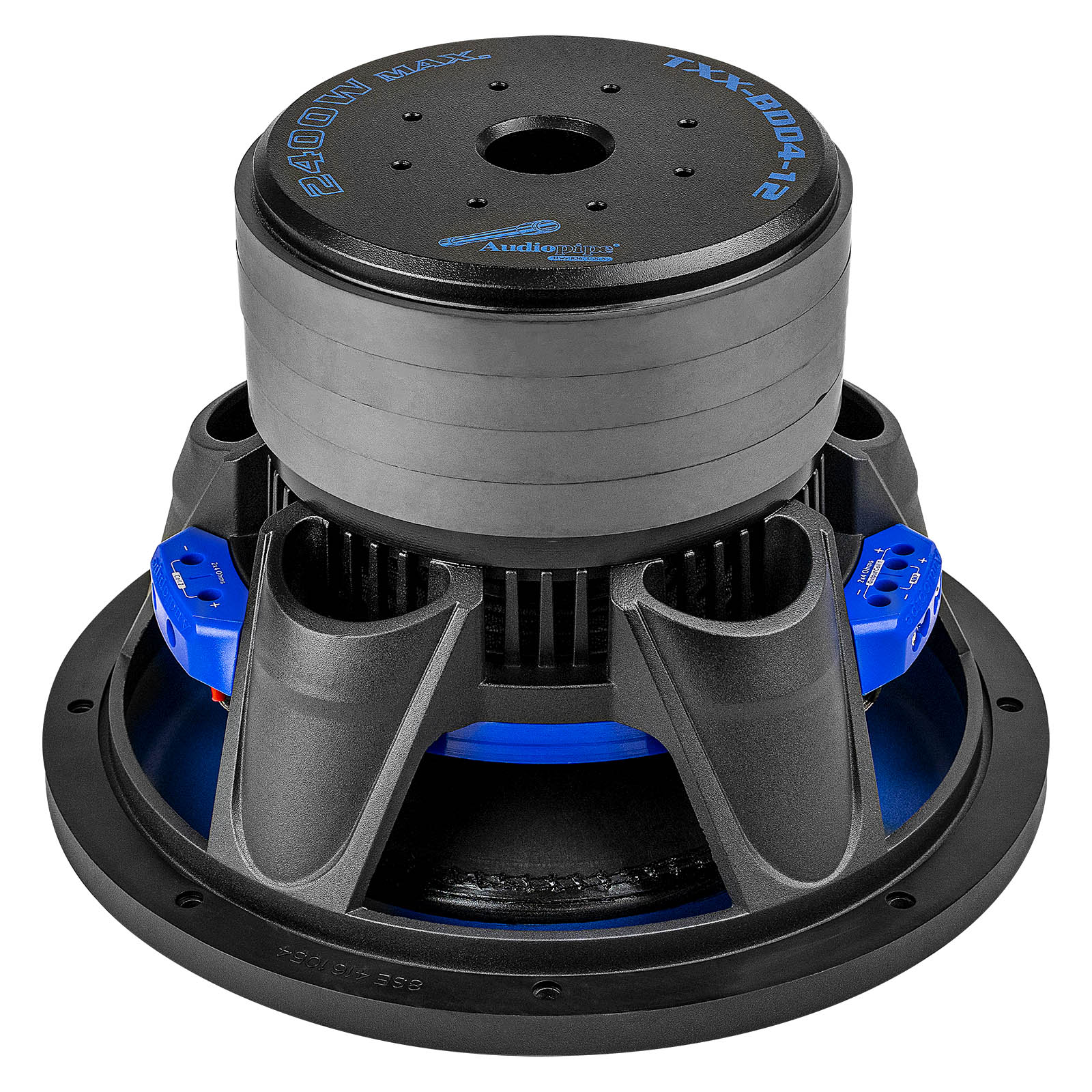

  • SUPERIOR PERFORMANCE: Our Quad Stack Power Subwoofer is engineered to include 4 magnets (220 Oz) for strong power handling and superior performance.
  • PEAK POWER: 2400 WATTS
  • RMS POWER: 1200 WATTS
  • FREQUENCY RESPONSE: 28- 1,200Hz
  • SENSITIVITY: 86dB

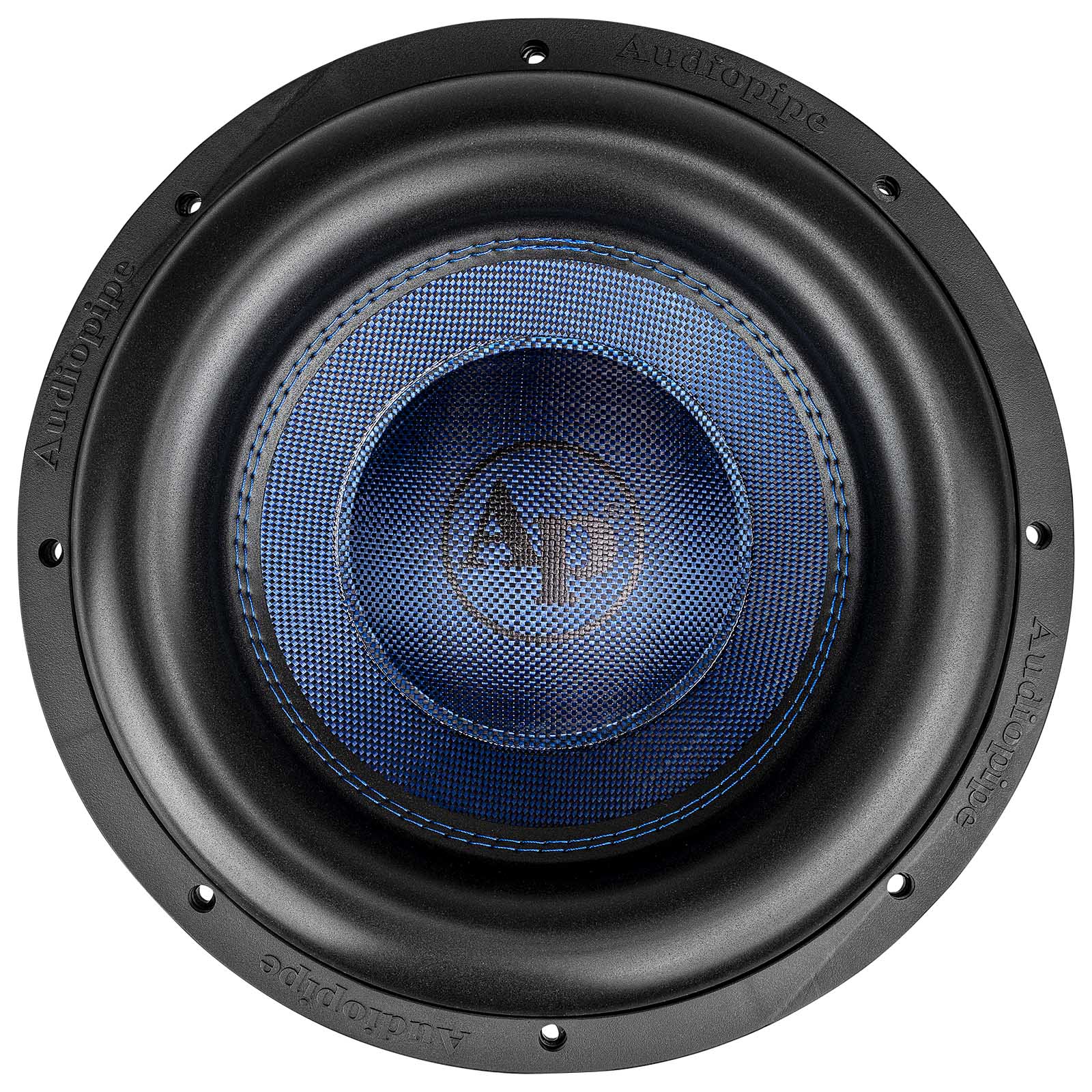

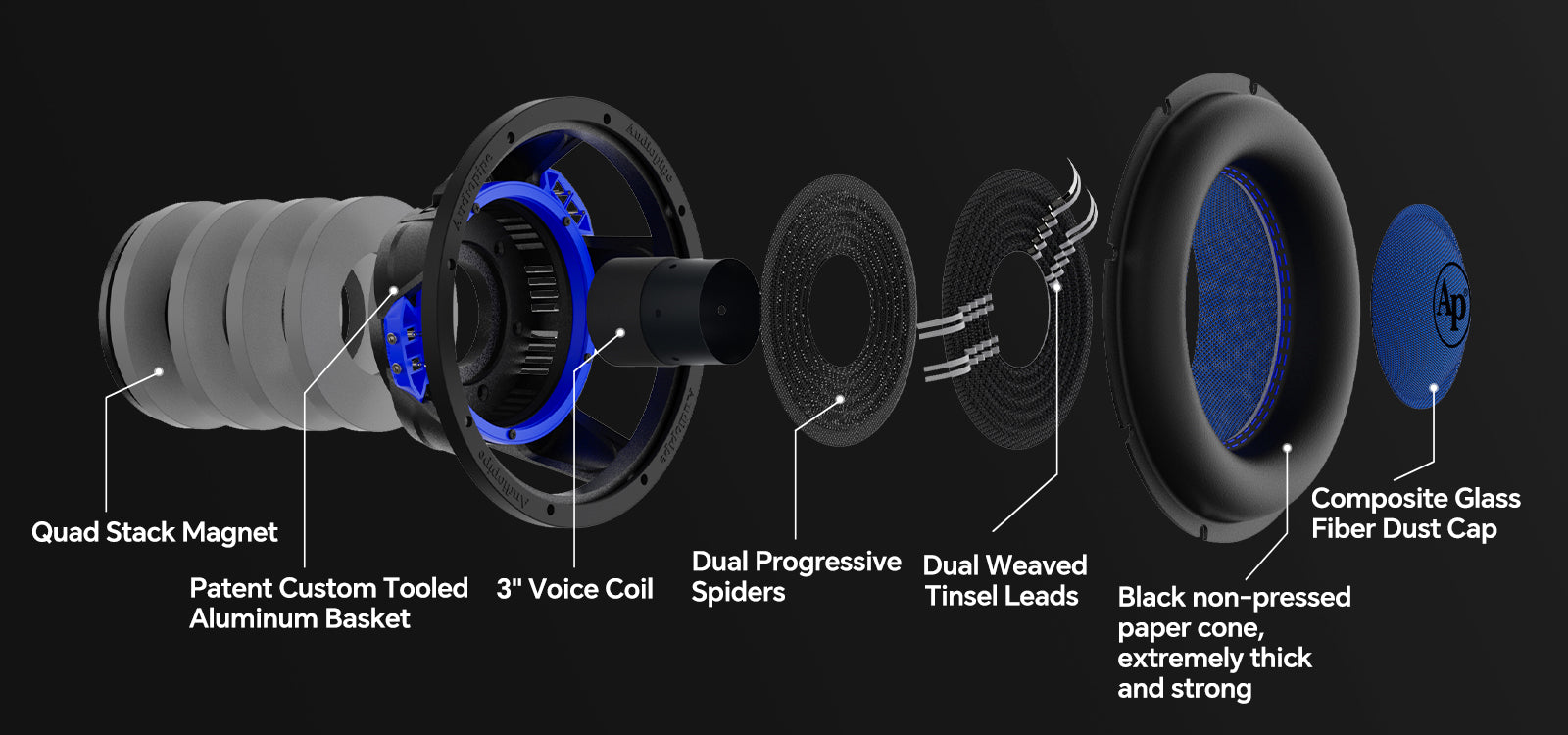

  • PAPER + FIBERGLASS COMPOSITE CONE: The composite cone is made from a combination of paper and fiberglass, providing optimal sound quality and durability. Designed for high-powered performance, this cone ensures a stable and accurate bass response.
  • AIR CUSHION FOAM SURROUND: The air cushion foam surround enhances sound quality while the high excursion allows for maximum bass output.
  • VOICE COIL: This subwoofer boasts 3" 4-layer black aluminum (BASV) dual voice coil for high power output.

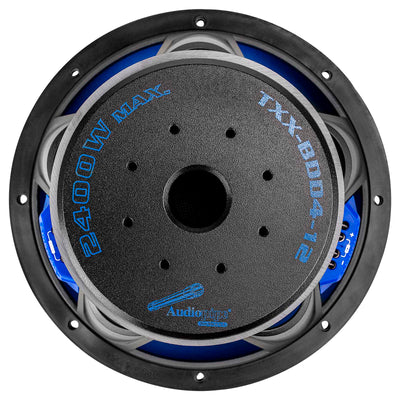

  • DIE CAST ALUMINUM BASKET: This subwoofer features a powdered black paint die cast aluminum basket which provides excellent overheat protection, reduces excess unwanted resonance, and maximizes durability with optimal sound quality.

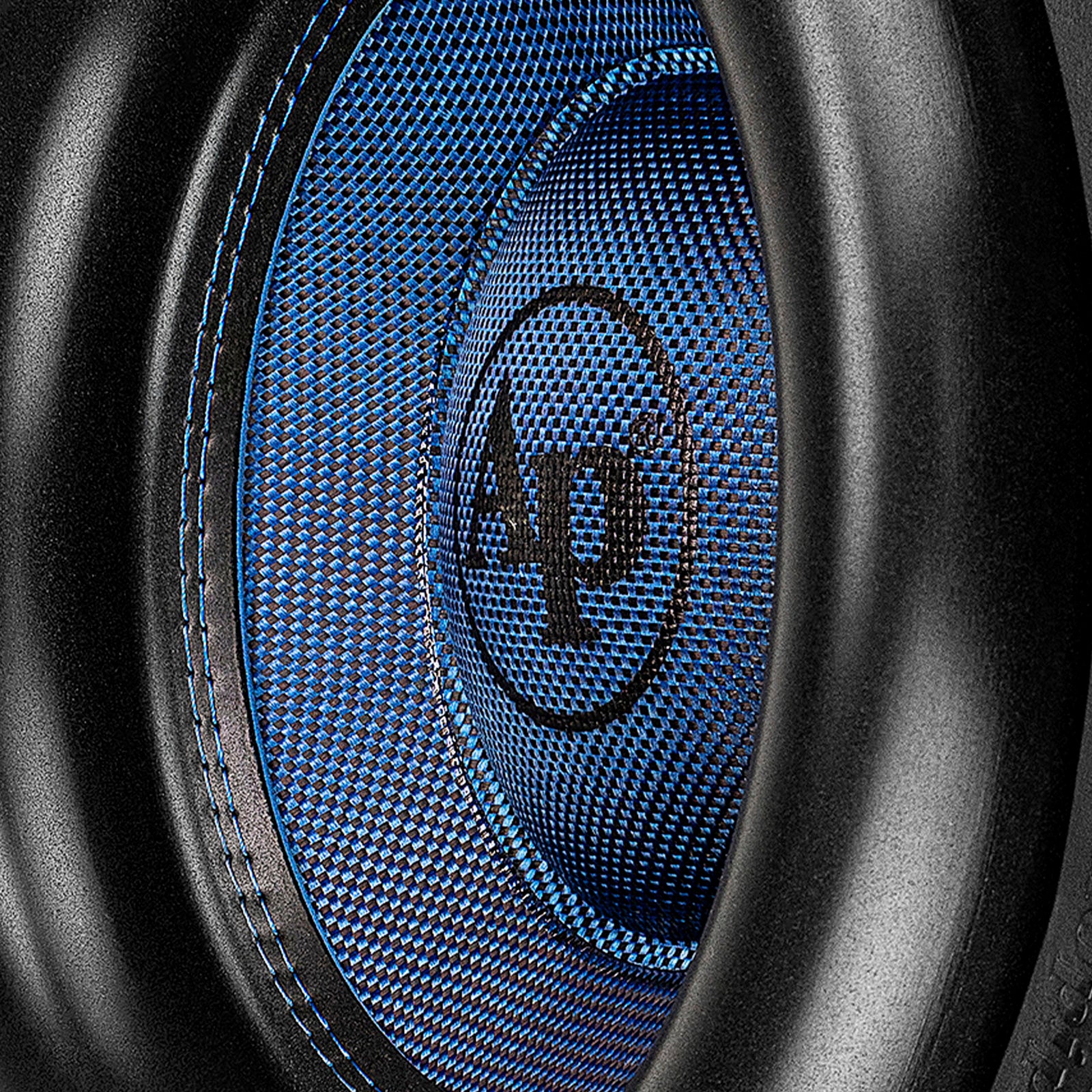

  • QUAD-STITCHED SURROUND: The blue stitching of the subwoofer greatly reinforces the cone and surrounds, ensuring a longer lifespan.

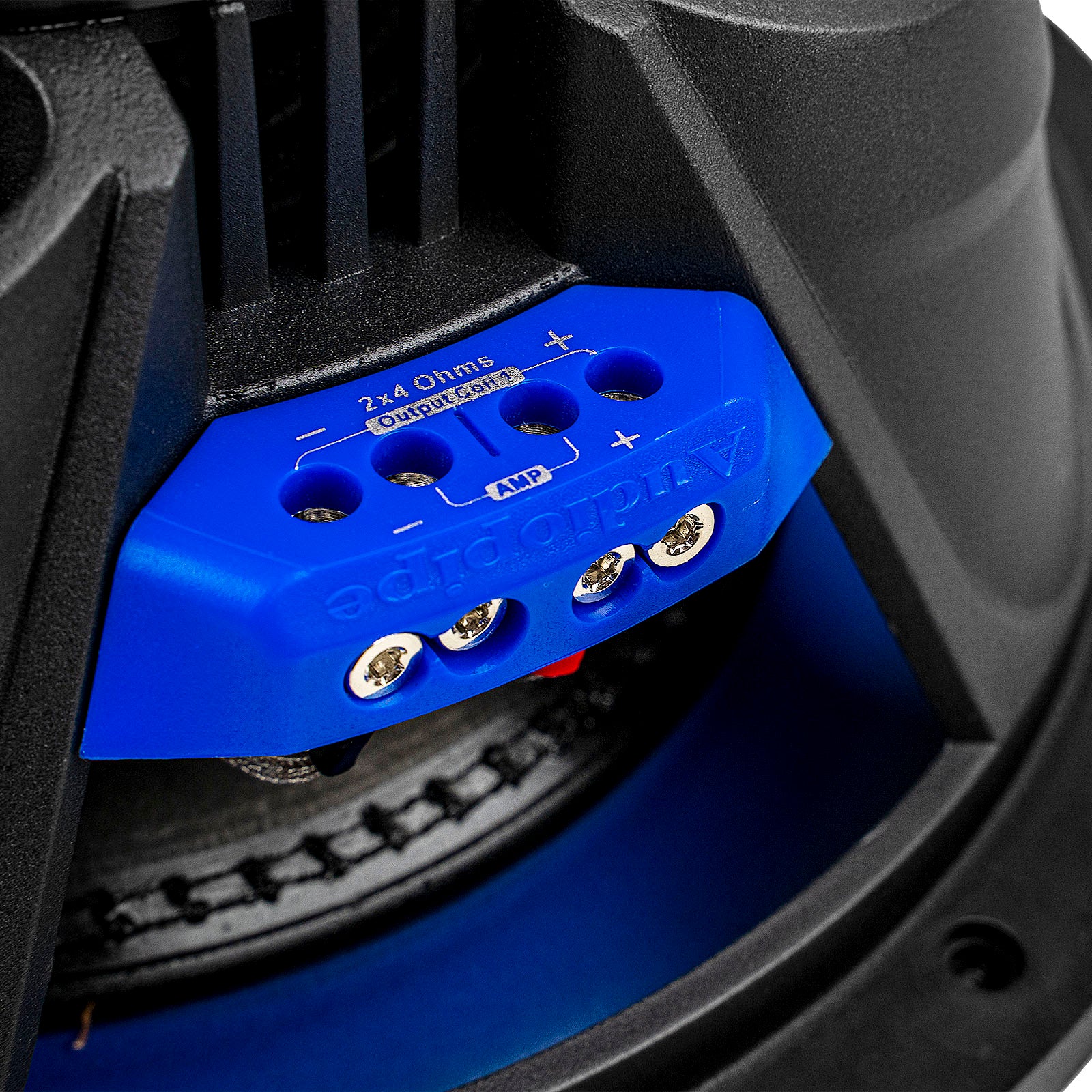

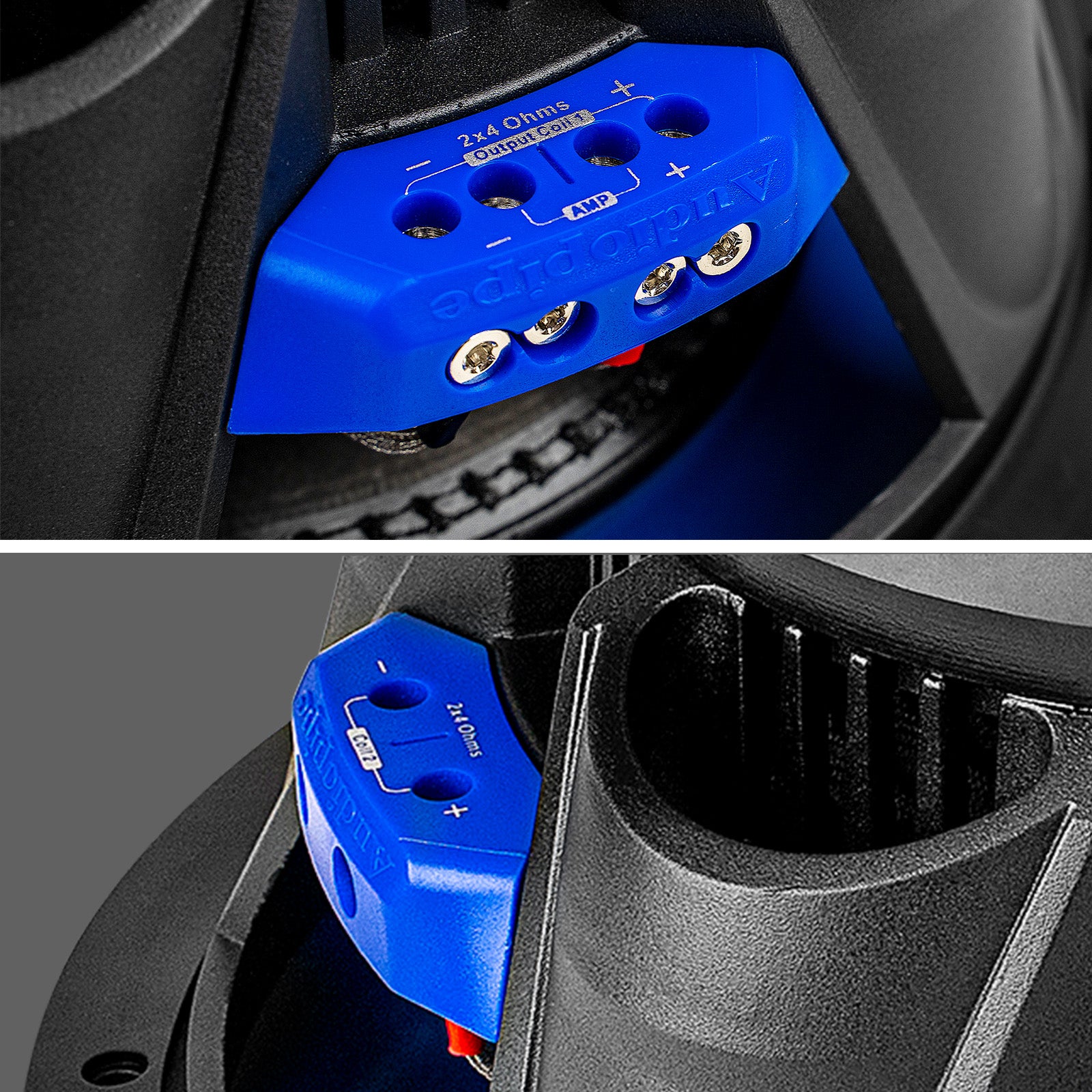

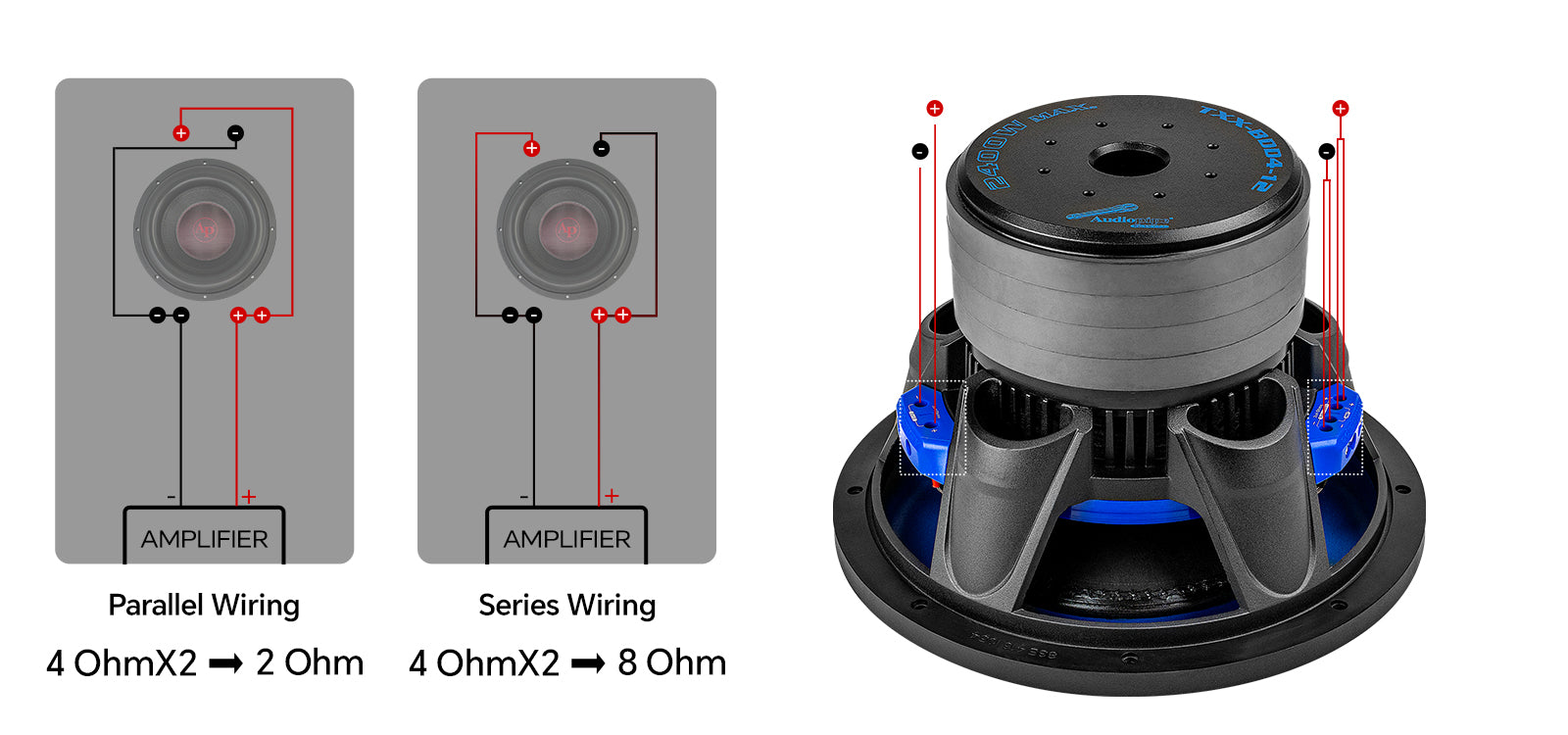

  • MULTI-CONNECT TERMINALS: This subwoofer is designed with multi-connect terminals, which allow for easy wiring of your subwoofer in either parallel or series configurations.
  • MOUNTING DEPTH: 7-7/8” (200mm)
  • IMPEDANCE: 2×4 Ohms




Description:

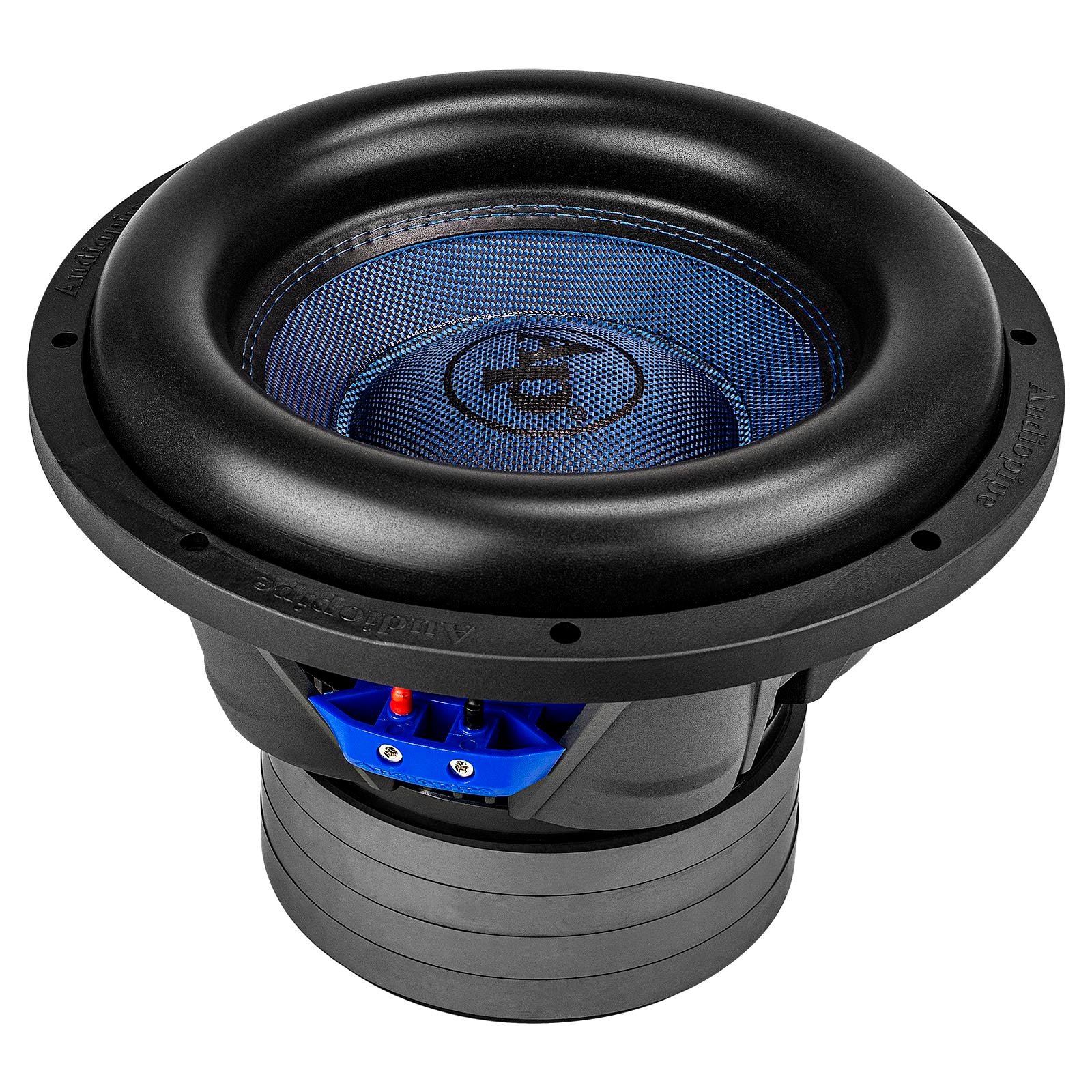

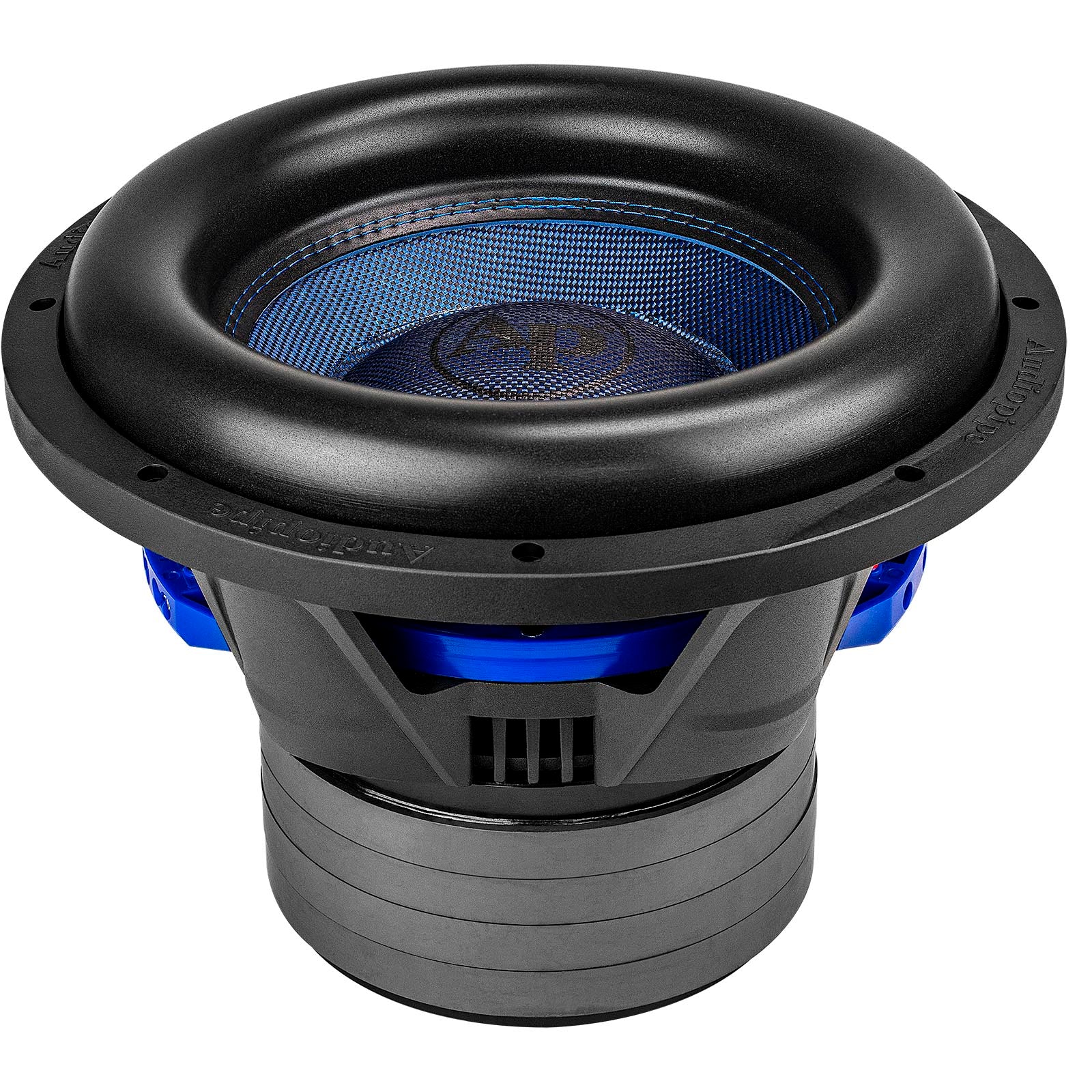

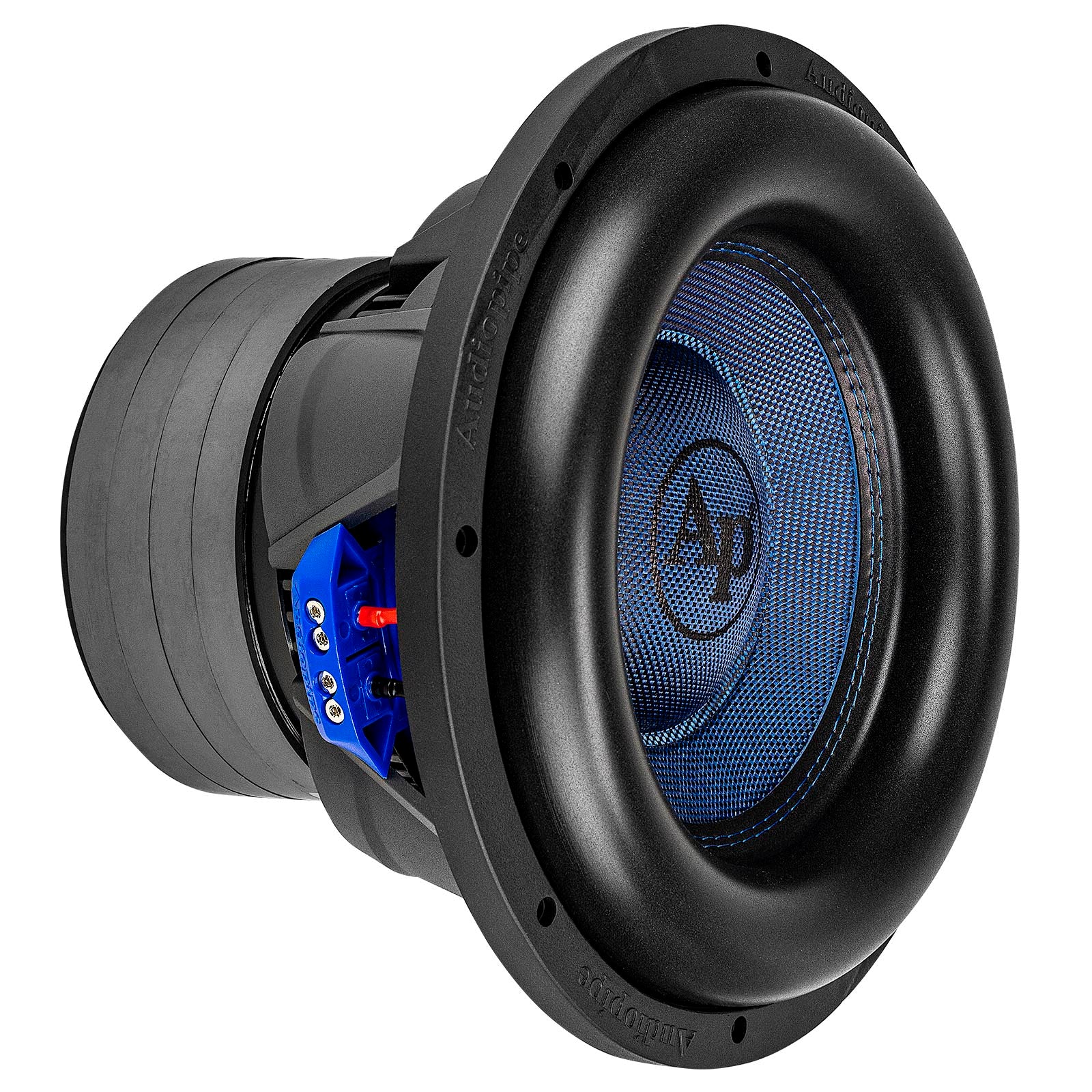

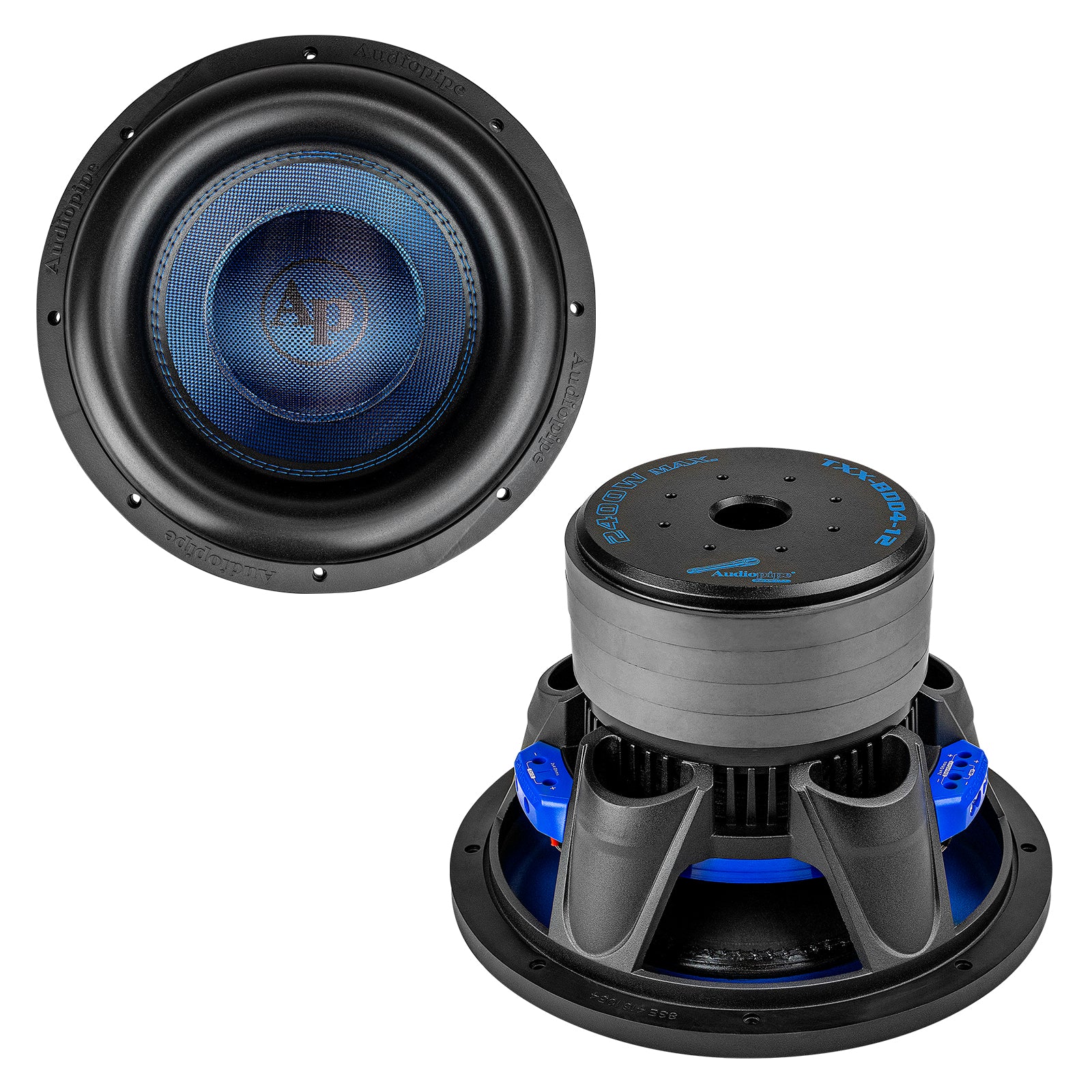

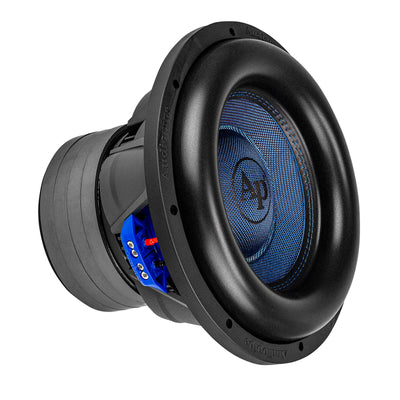

Experience powerful, high-quality bass with our 12” Quad Stack High Power Subwoofer. With 2400 watts of P.M.P.O. power and a 3" 4-layer dual voice coil, this subwoofer delivers crisp, clear sound at a frequency response of 28- 1,200Hz. Its Large Inverted Composite Fiberglass Cone provide superior performance, while the easy connect terminals allow for convenient wiring. Upgrade your car audio system today with our subwoofer!





TXX-BDD4-12-English/Spanish Product Manual
