Professional Audio Signal Processor (APCR-203X)
APCR-203X
Pairs well with

Professional Audio Signal Processor (APCR-203X)
Product details
Description
- PROFESSIONAL PROCESSOR: Expertly designed for optimal sound quality, the APCR-203X is a professional audio signal processor that features a versatile crossover type. With the ability to switch between stereo 2 way and mono 3 way modes, this processor allows for precise control and customization of your audio signals

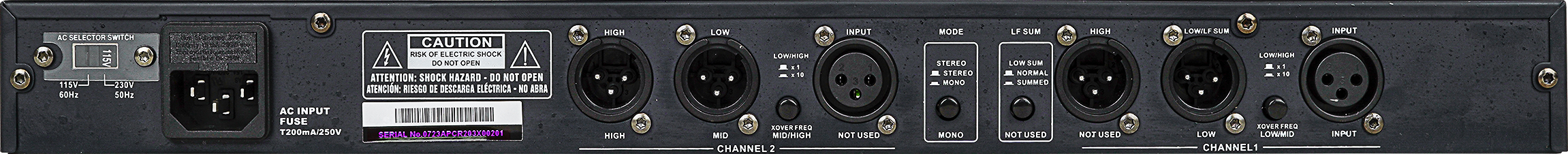

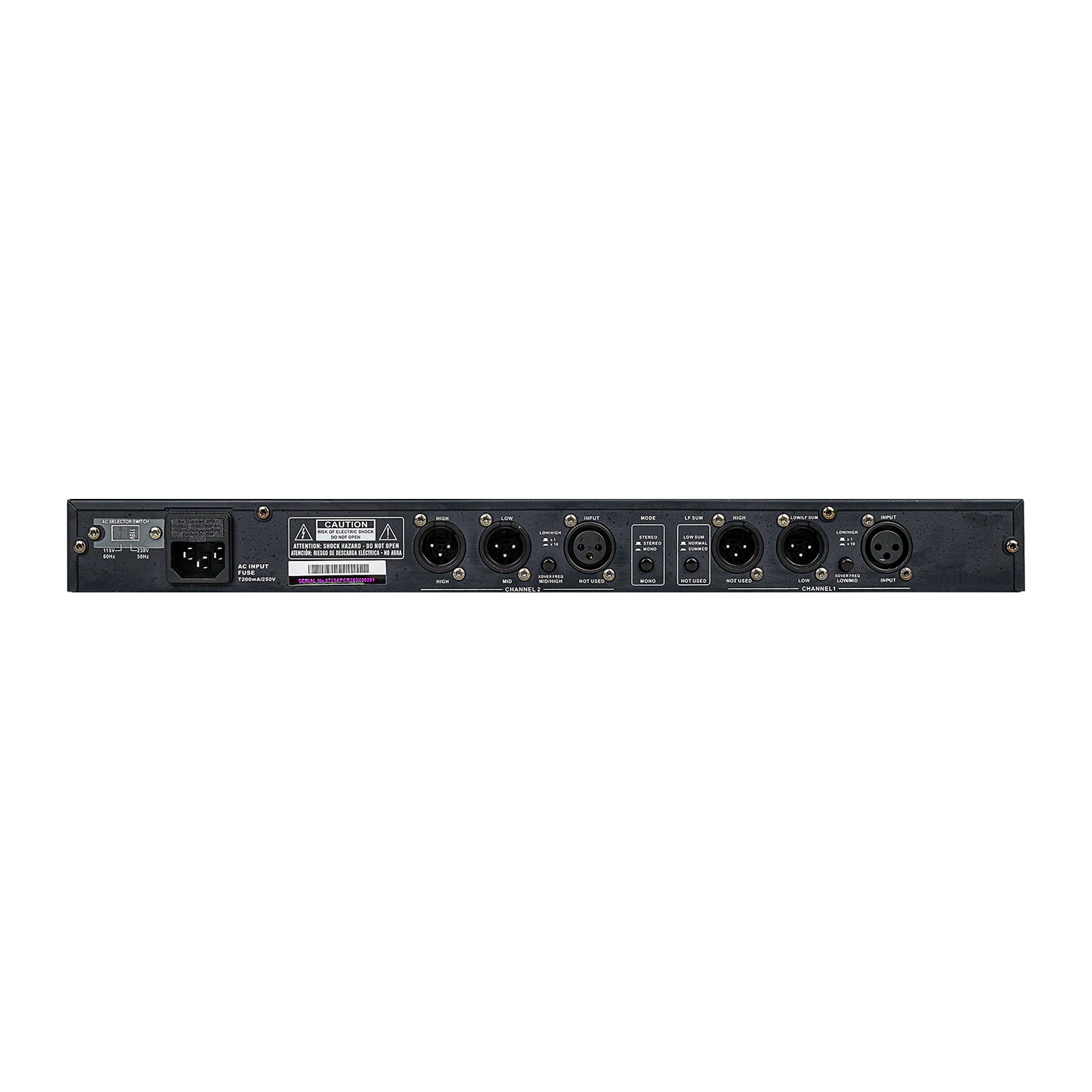

- COMPATIBLE INPUT TYPES: The APCR-203X offers input types of balanced XLR and unbalanced ¼", providing versatility and compatibility with various audio equipment. Experience high-quality sound and a seamless integration with your existing setup

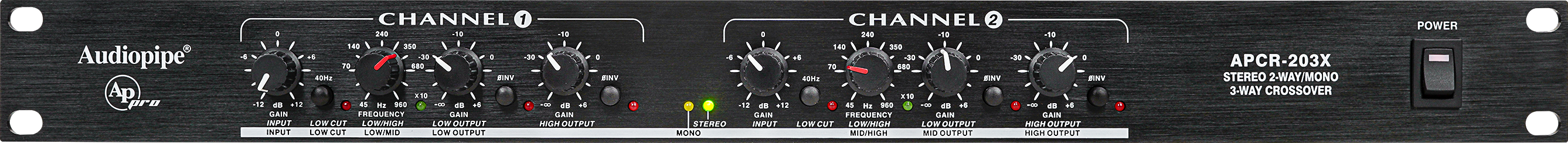

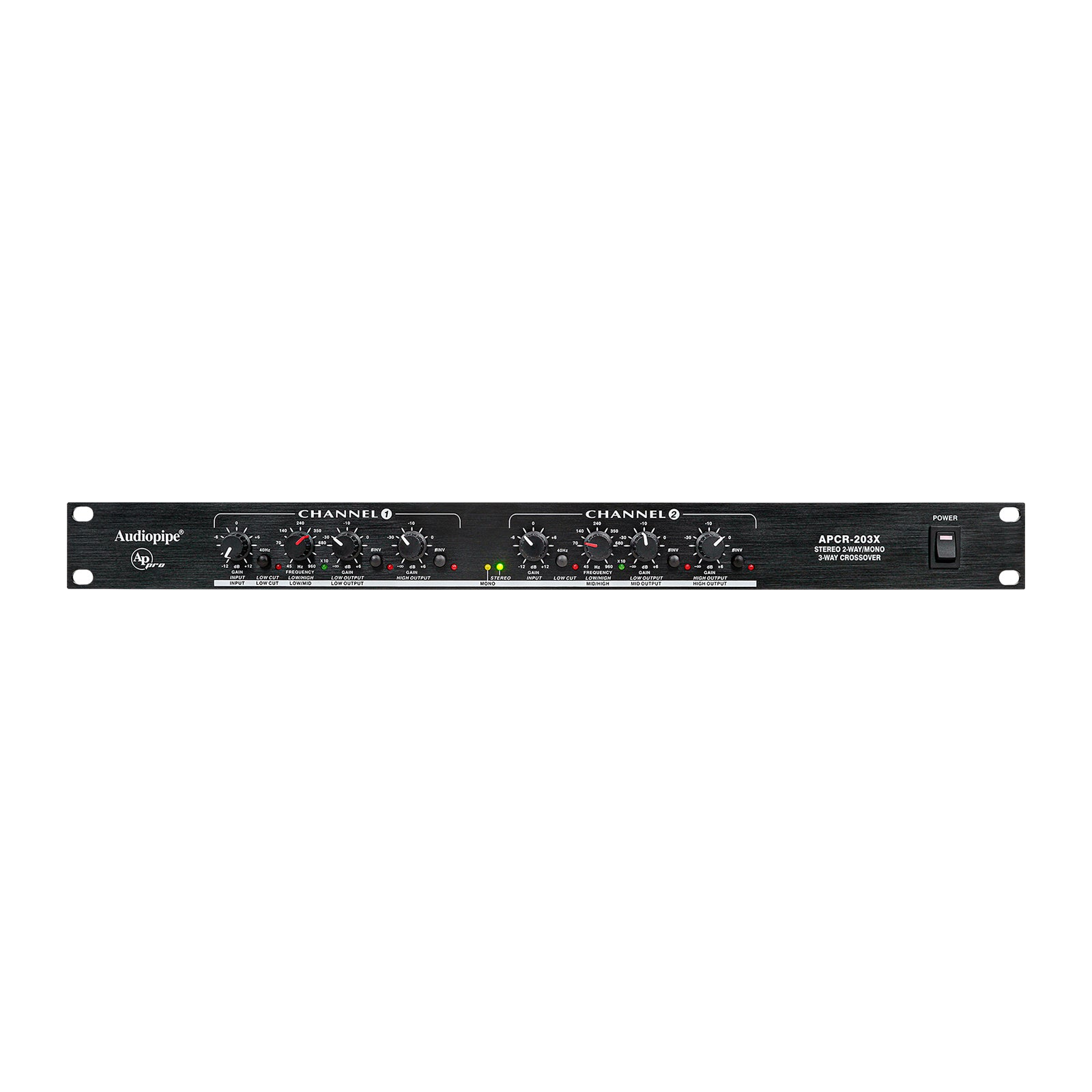

- COMPLETE CONTROL: The APCR-203X is equipped with a power switch and adjustment knobs of gain input, frequency range and gain output, providing precise and efficient control over audio signal processing
- CONVENIENT LED INDICATORS: Designed with multiple LED indicators, this processor allows you to efficiently monitor your audio signals, providing convenience and ease of use
- EASY TO INSTALL: The APCR-203X comes with the reserved mounting holes for a secure and seamless setup, ensuring a hassle-free installation
-
CROSSOVER RANGE (STEREO):
Low/Mid: 50Hz-5KHz;
Mid/Highs: 750Hz-7.5KHz - CROSSOVER RANGE (MONO):
Low/Low-Mid: 50Hz-5KHz;
Low-Mid/Highs: 750Hz-7.5KHz
Hight-Mid/Highs: 2KHz-20KHz
- FILTER TYPE (SLOPE): 18dB/Octave
- INPUT IMPEDANCE: 20KΩ Balanced
- OUTPUT IMPEDANCE: 102Ω
- LOW CUT FILTERS: 40Hz/-3dB, 18dB/Octave
- FREQUENCY RESPONSE: 20Hz ~ 25KHz, +0/-1 dB
- S/N RATIO: >-90dB
- THD: 0.006%
- FUSE: T200mA/250V, 5x20mm
- AC VOLTAGE: 100~120/60Hz or 200~240/50Hz VAC Selectable
- DIMENSIONS: 482 x 146 x 44 mm(19” x 5.75” x 1.73”)
- WEIGHT: 2.0Kg (4.0 lbs)
