AQS-7000D - 4 Channel Professional Power Amplifier

• Output Power 1KHz, <0.05% THD:
Stereo Power (8 ohm): 1600W x 4
Stereo Power (4 ohm): 2800W x 4
Stereo Power (2 ohm): 3400W x 4
Bridge Power (8 ohm): 5600W x 2
Bridge Power (4 ohm): 6800W x 2
• THD (20Hz~20kHz for 1W): <0.1%
• THD (1kHz and 1dB below clipping): <0.05%
• Signal Noise Ration: > 106dB
• Frequency Response (+/- 0.1cB): 10Hz-35kHz
• Damping coefficient: > 1000
• Impedance (balanced/unbalanced): 20KΩ/ 10KΩ
• Gain (optional): 0.775V/1V/32dB

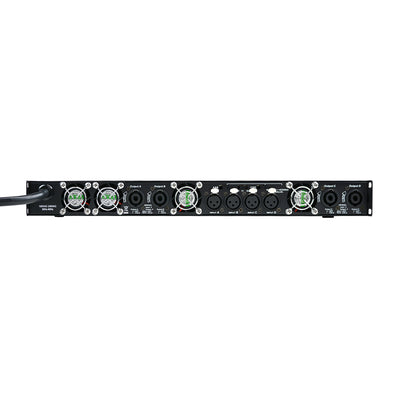

• Output socket: Speakon Connectors (NEUTRIK)
• Input socket: Combo XLR type, 3pin
• Protection: Short circuit, open circuit, thermal, overload, DC, super audio protection
• Power Requirement: 110-240V~ 50/60Hz (PFC)
• Dimensions (WxHxD): 483 x 45 x 391mm
(19.0”1.77”x15.4”)
• Weight: 9.5 Kg (20.9 lbs)
