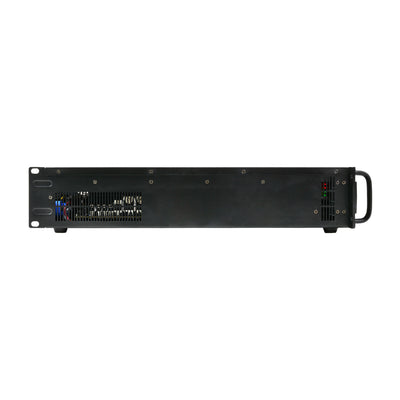

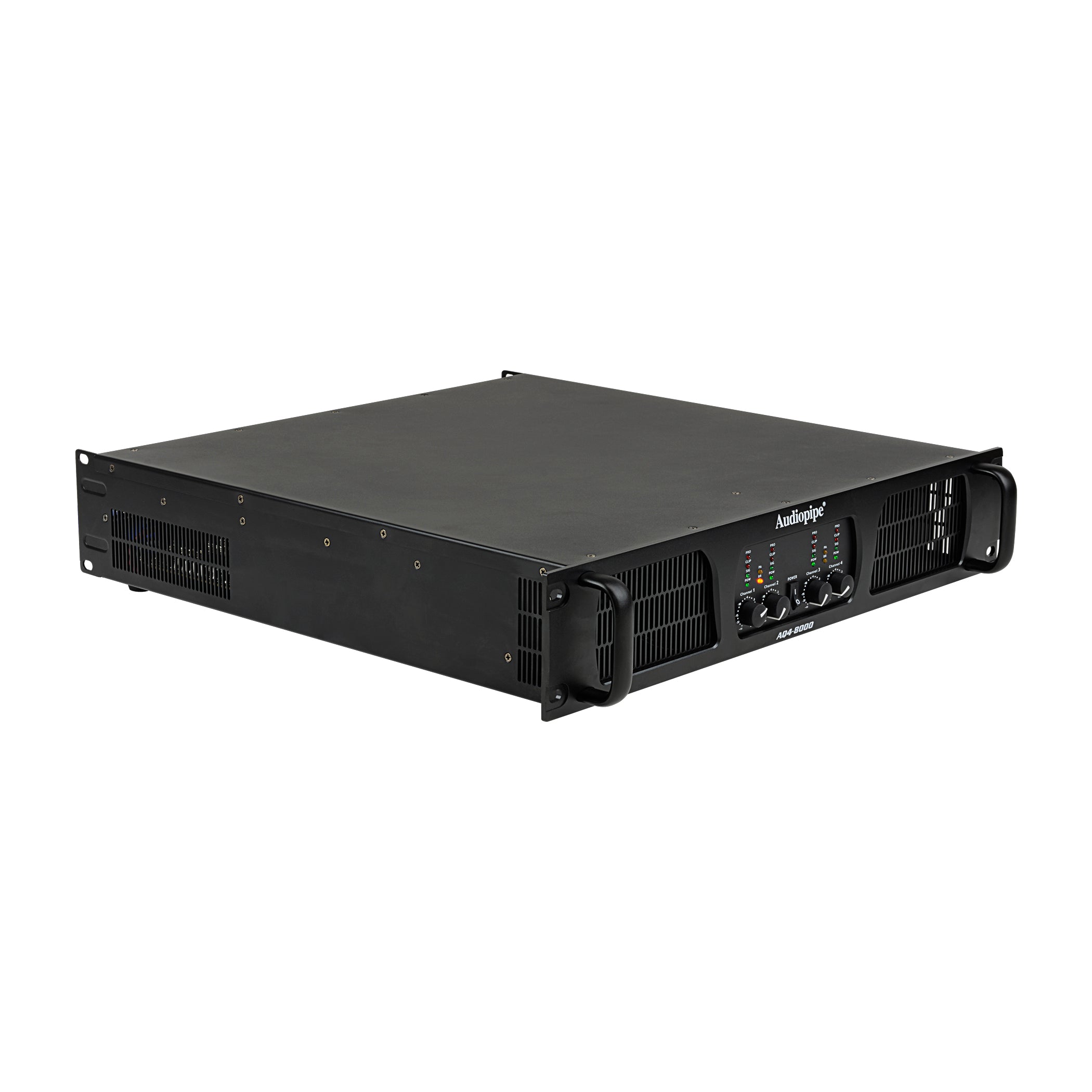

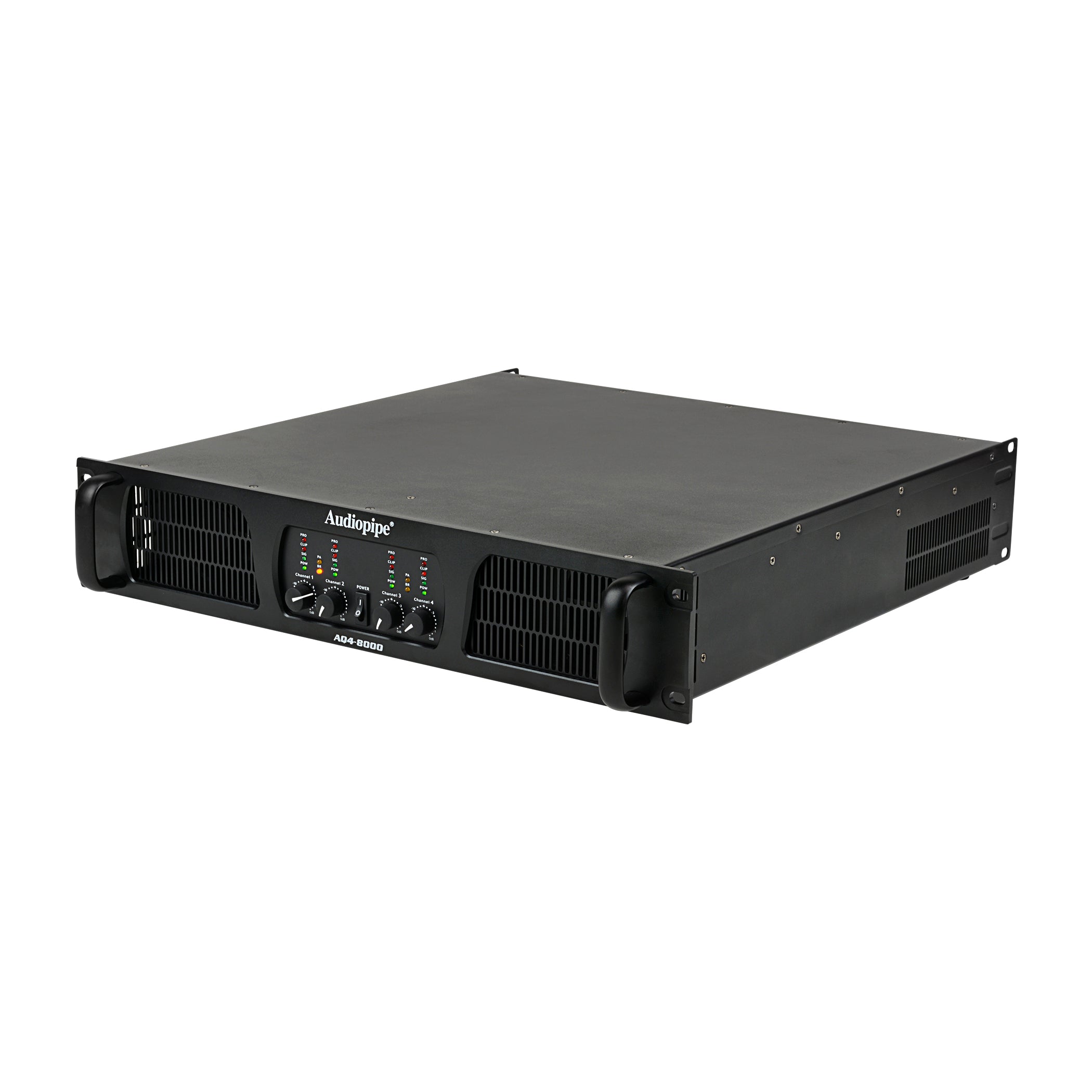

AQ4-8000 - Professional Power Amplifier

• Stereo Mode (both channels driver)

8Ω/RMS 1 kHz/1% THD: 4 x 1000W

4Ω/RMS 1 kHz/1% THD: 4 x 1500W

2Ω**/EIA 1 kHz/1% THD: Not Recommendable

• Bridge Mono Mode

8Ω/EIA 1 kHz/1% THD: 2 x 3000W

4Ω**/EIA 1 kHz/1% THD: 2 x 4000W (Not Recommendable)

• Maximum Distortion (8 ohms, 20-20kHz, 1dB below rated power): 0.2%
• Frequency Response (8 ohms, 20-20kHz, +/-0.5dB.
• S/N rate (20Hz-20Hz): 95dB
• Damping Factor (8 ohms):>700
• Output Circuit Type: Class - TD
• Input Sensitivity: 1.0V, 1.4V, 2.0V
• Input Impedance: >10k ohms, balanced or unbalanced.

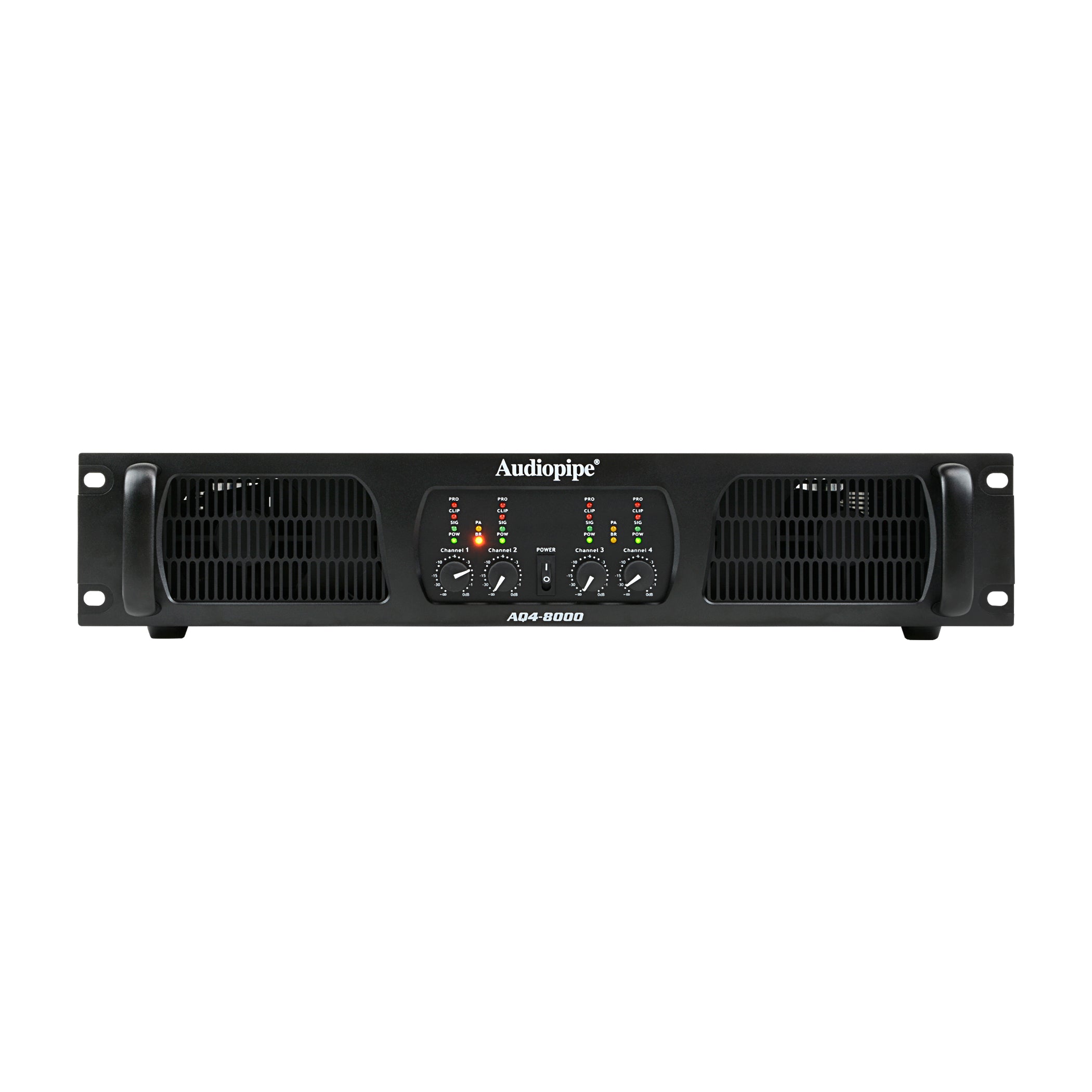

• Front Panel: POWER switch (Push on/ Push off), Two Volume control knobs (one per ch)
• Indicators: POWER (4 x Green), SIGNAL (4 x Green),

CLIP (2 x Red), PROTECTION (4 x Red)

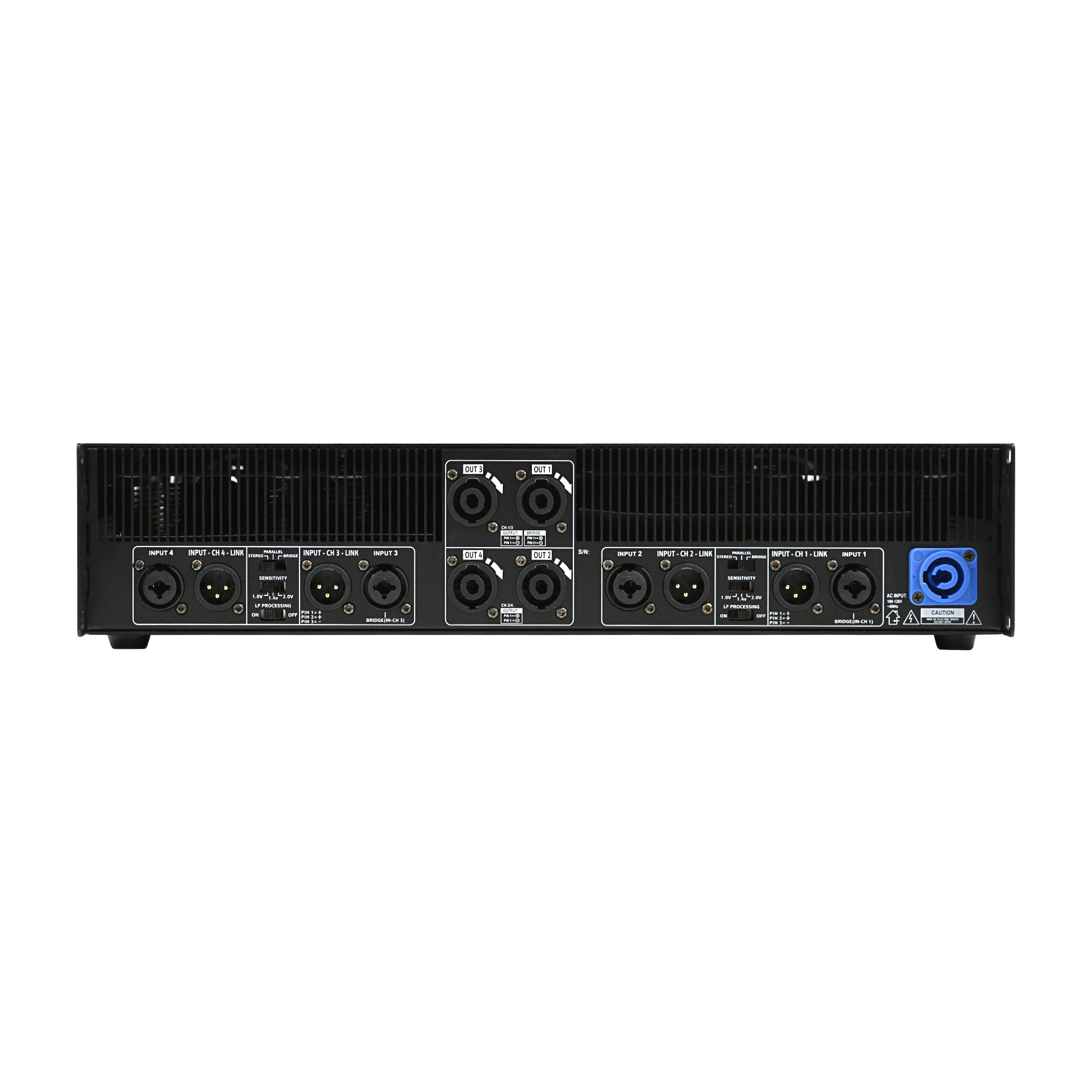

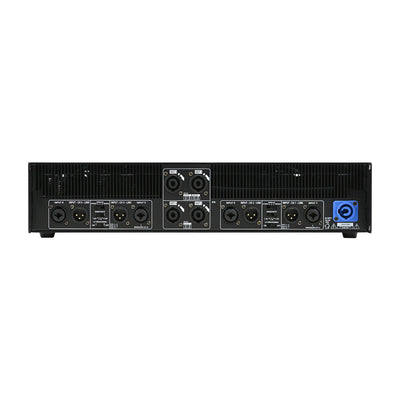

• Output Connectors: Speak-On (one per ch)
• Input Connectors (Each channel): Male XLR, Female XLR
• Amplifier and Load Protection: Short circuit, open circuit, thermal,

RF protection. On/off muting, DC fault shutdown, active inrush limiting.

• Dimensions (WxHxD): 483 x 88 x 463mm (19.0” x 3.46” x 18.2”)
• Weight: 13.8Kg (30.4 lbs)
