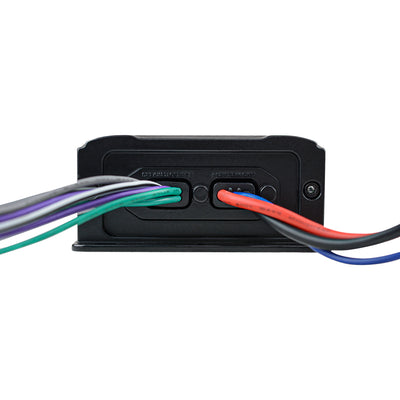

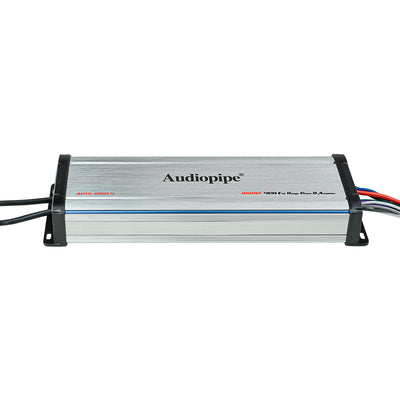

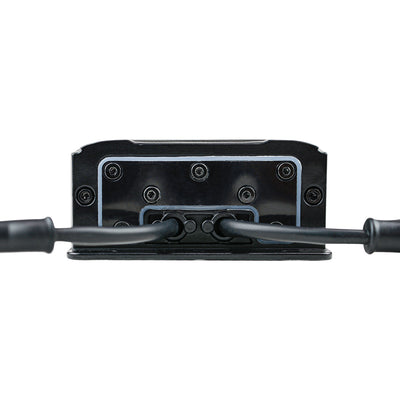

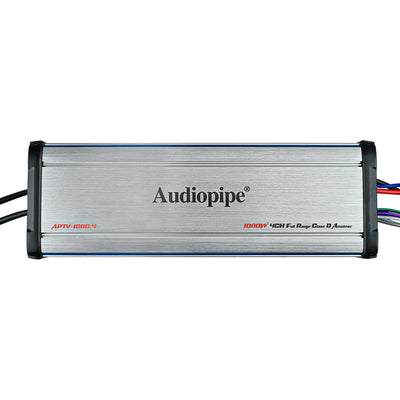

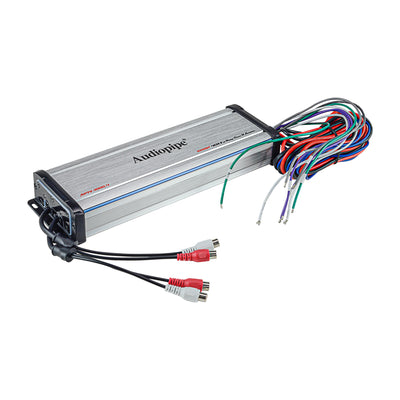

APTV-1000.4 - 4 Channel Full Range Class D Amplifier

Roll over image to zoom in

APTV-1000.4 - 4 Channel Full Range Class D Amplifier

AudiopipeSKU: APTV-1000.4

Share this product

Specifications
Reviews

Specifications

4 Channel Full Range Class D Amplifier

Output power (RMS) @ 1% 1Khz 14.4V
Stereo@4 Ohms: 4 x 100W
Stereo@2 Ohms: 4 x 150W
Mono@4 Ohms: 2 x 280W
Frequency Response (-3dB): 20Hz ~ 20Khz
Crossover Range High and Low Pass: 40Hz ~ 400Hz @ 13dB/OCT
S/N Ratio (A wtg): > 90dB
Input Sensitivity: 0.25V ~ 10V
Working Voltage: 9V ~ 16V
Anti-dust and Waterproof level: IP67
