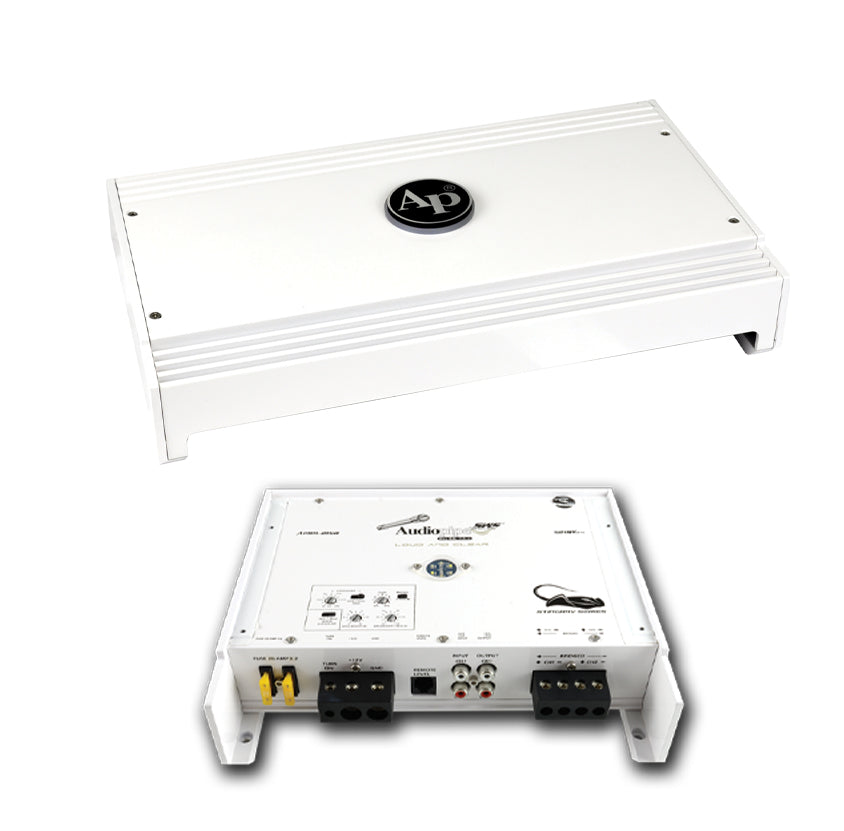

APSR-2150 1200W 2-Channel Class D Amplifier

Output Power(RMS)@1% 1KHz 14.4V

Stereo@4 ohms – 2 x 150 Watts @ 25A

Stereo@2 ohms – 2 x 260 Watts @48A

Mono@4 ohms – 1 x 520 Watts @ 48A

Frequency Response -3dB – 10Hz-20KHz

Crossover Range High & Low Pass 30Hz-300Hz 12dB/Octave

Bass Boost – 0-12dB @ 27Hz-110Hz

S/N Ratio(A wtg) – >85dB

Input Sensitivity – 0.2V-6V

Overvolt Protection – 16.5V

Under-Voltage Protection – 8.5V

Dimension ( L x W x H ) – 223mm x 214mm x 64mm
