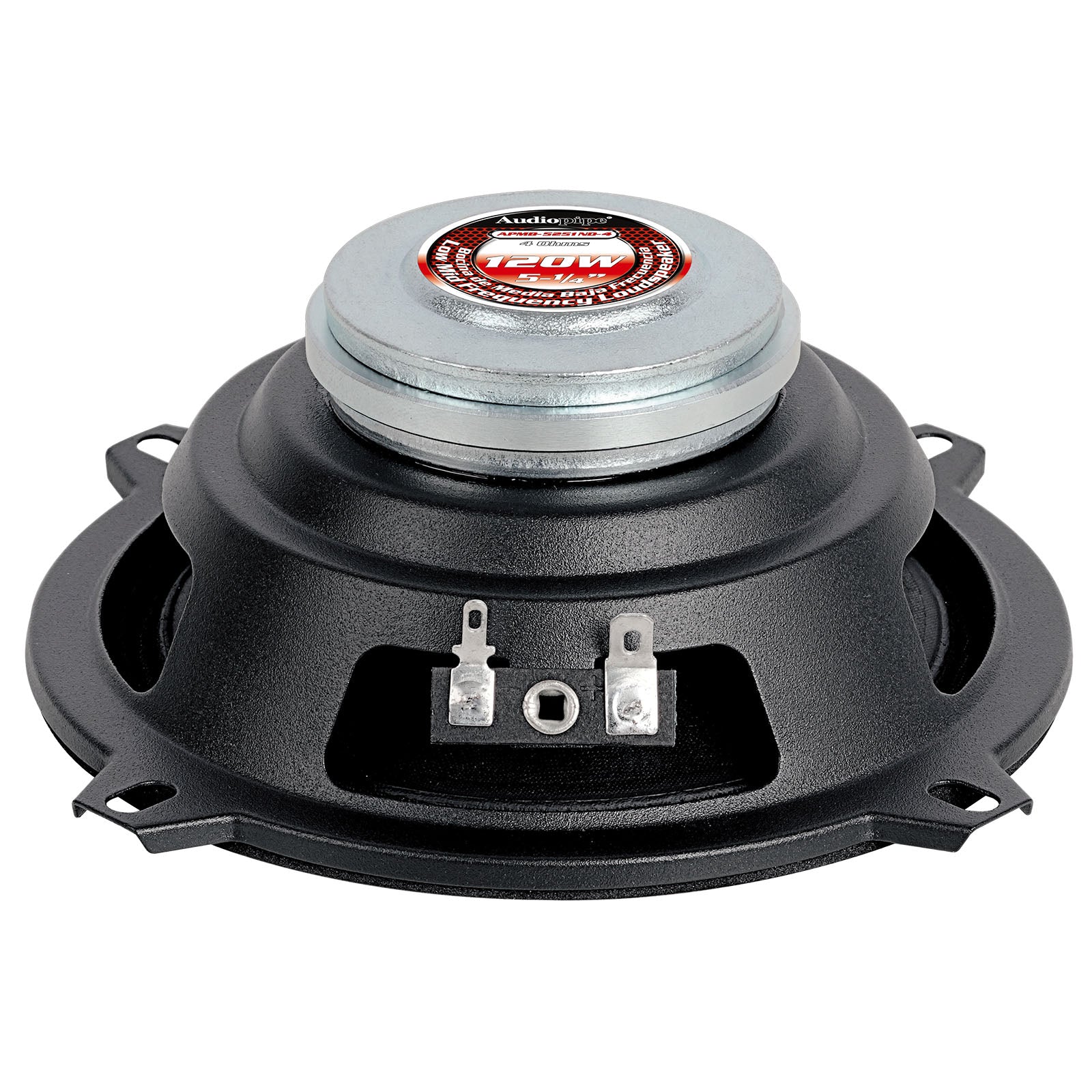

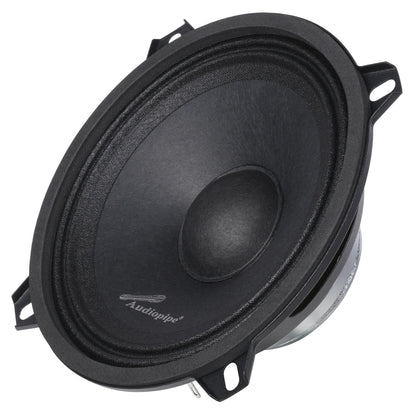

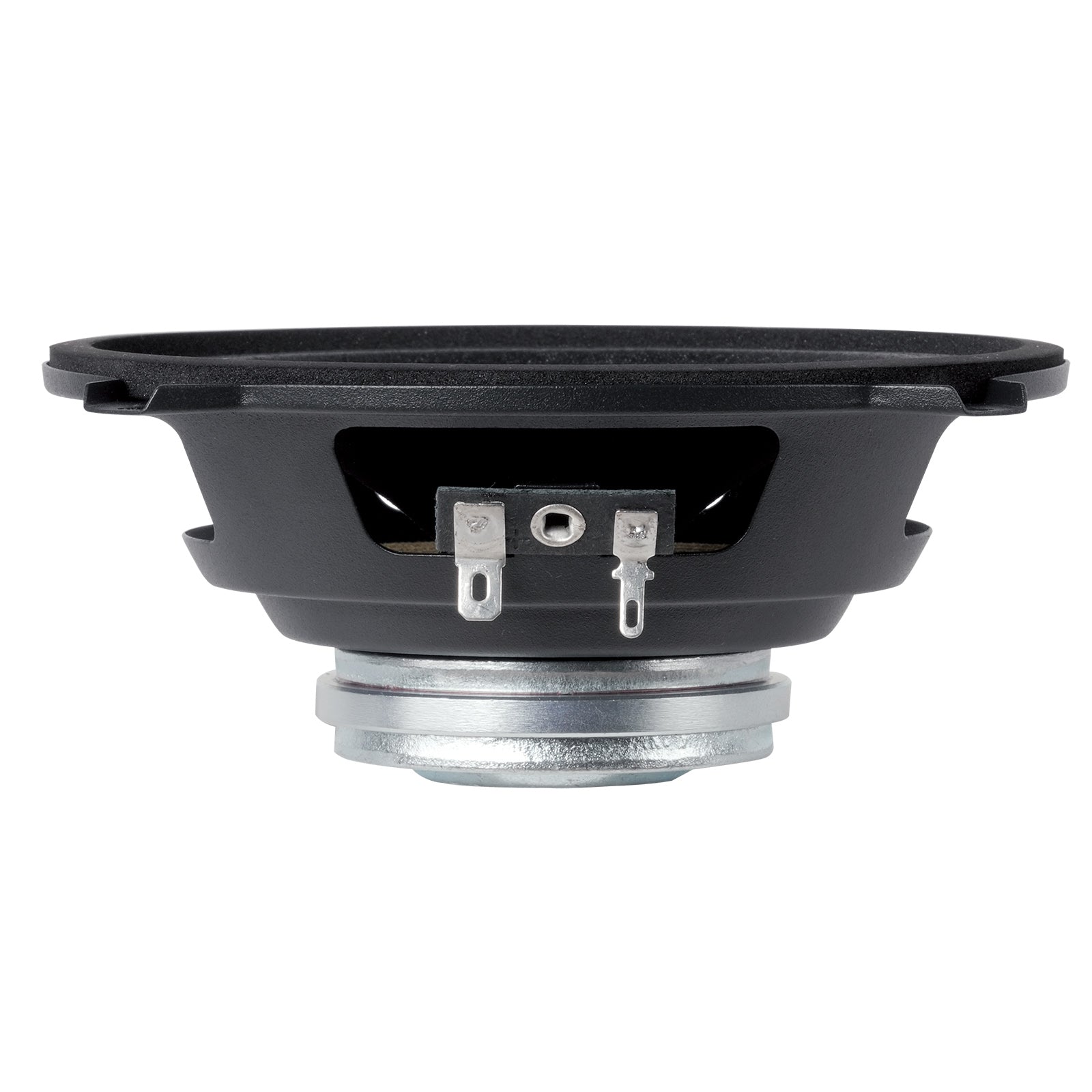

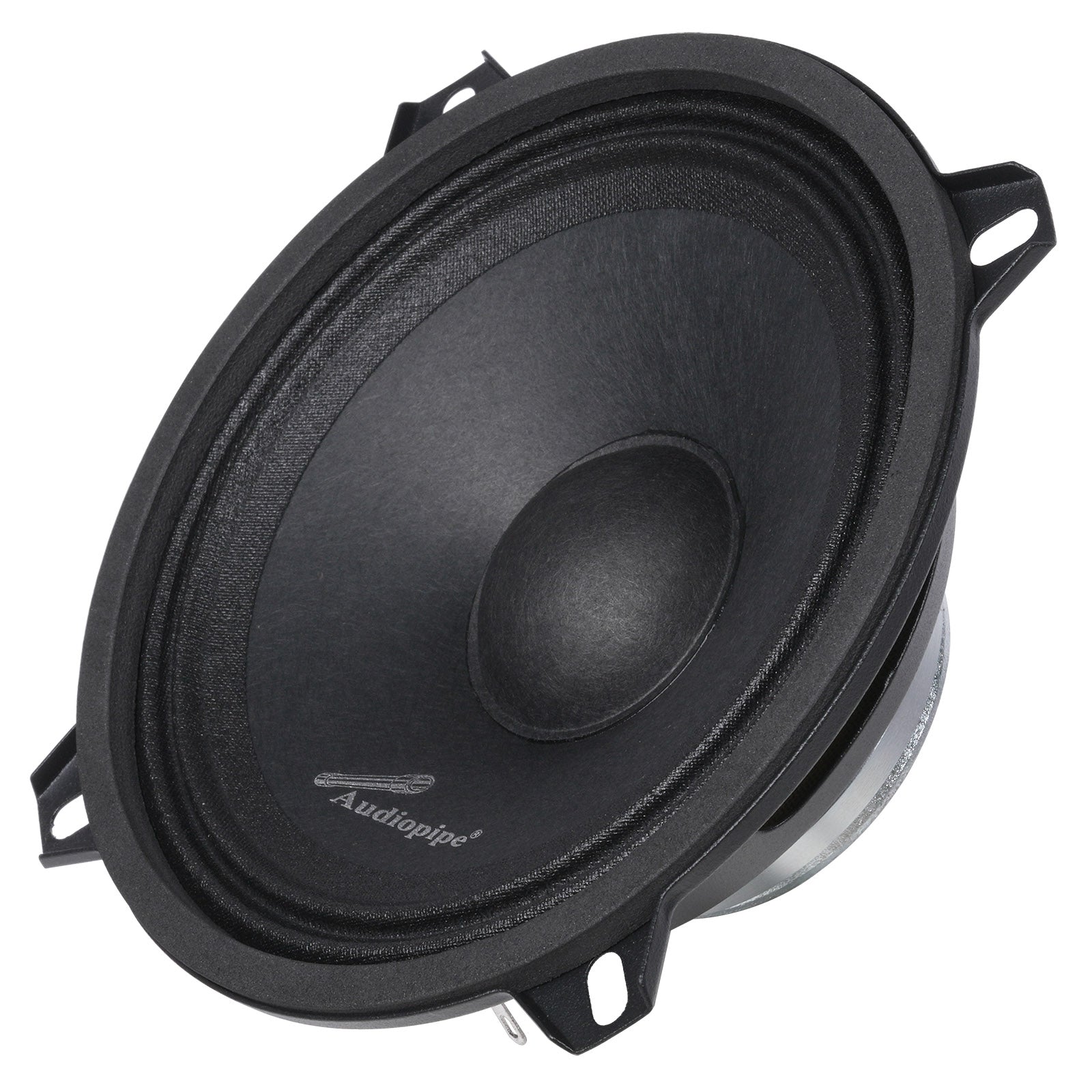

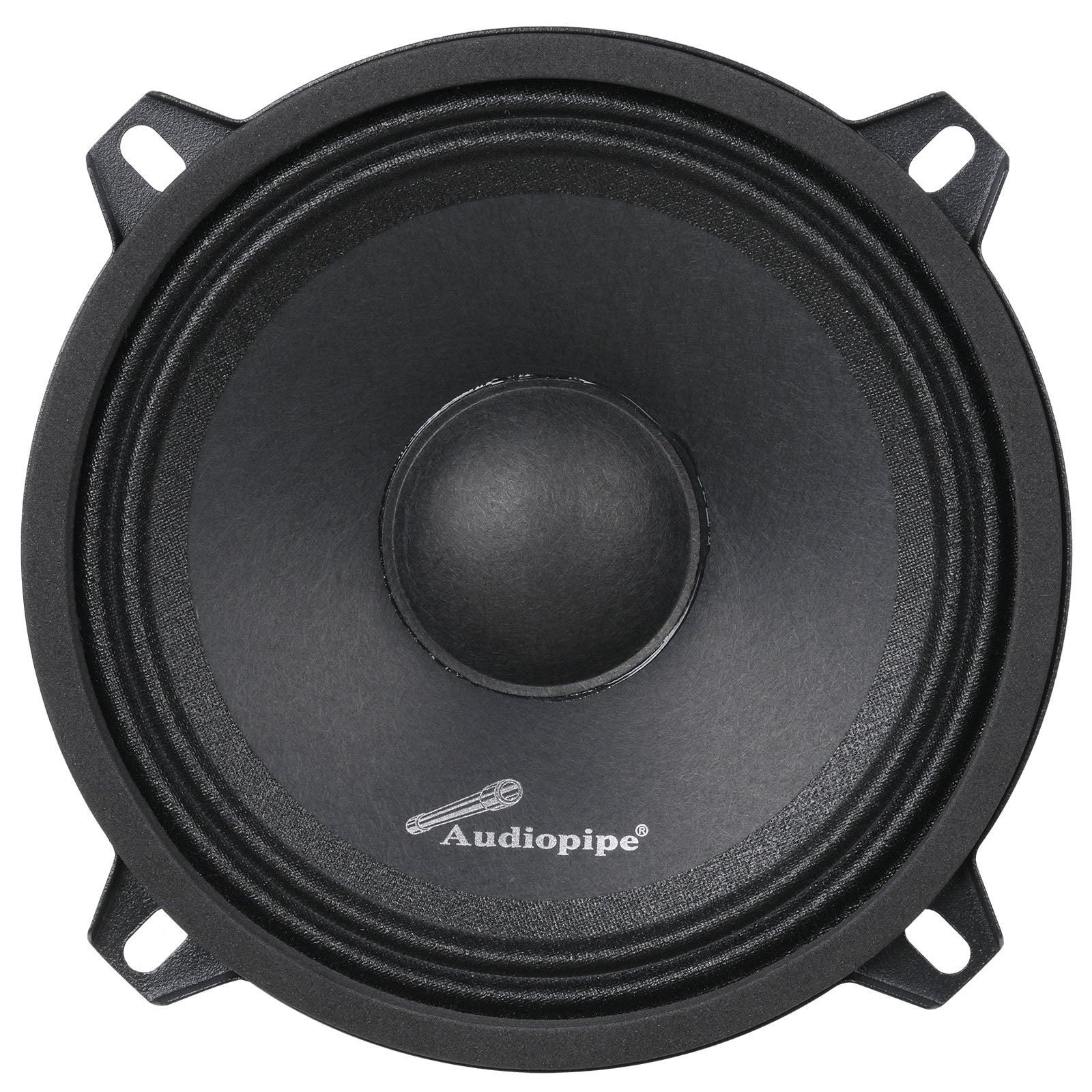

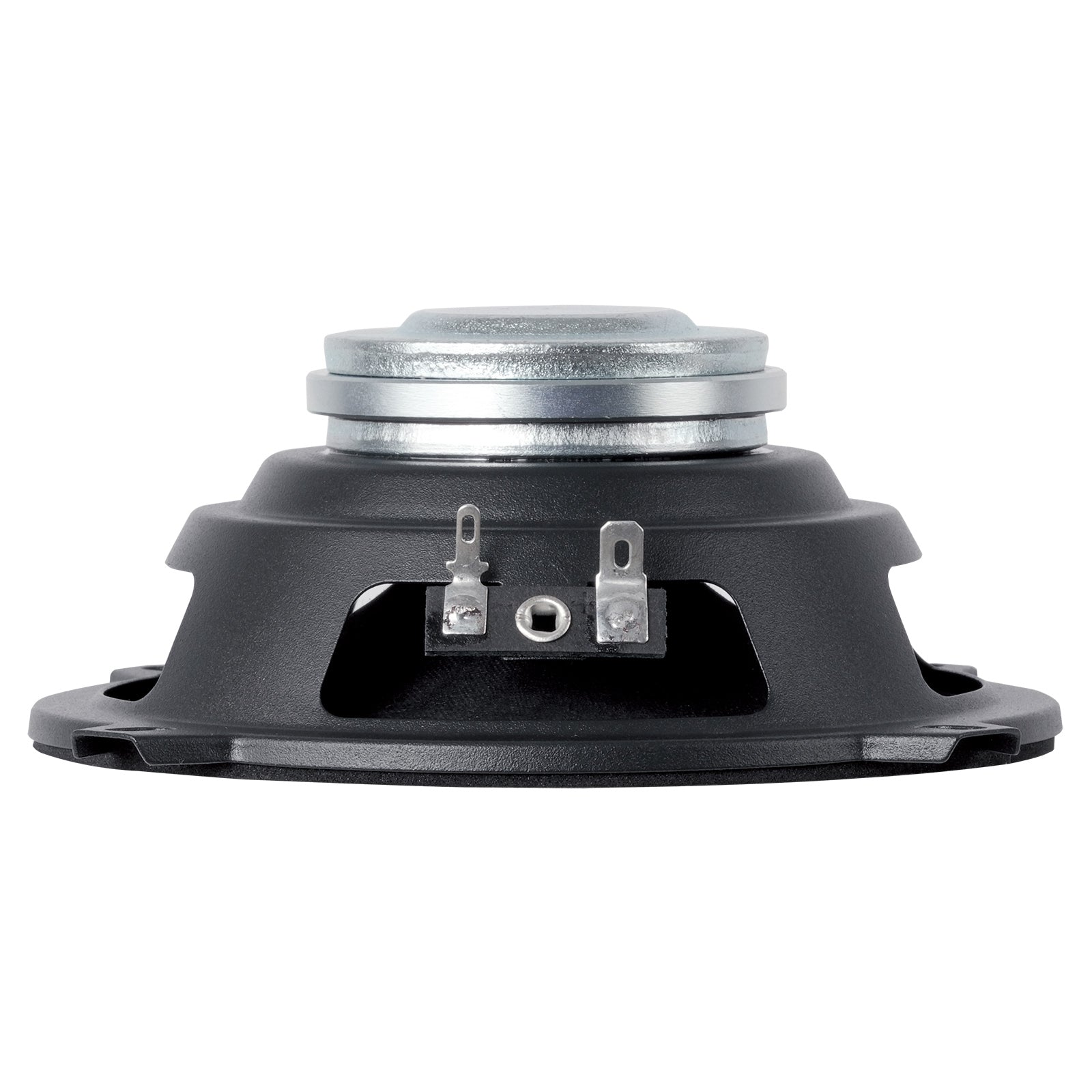

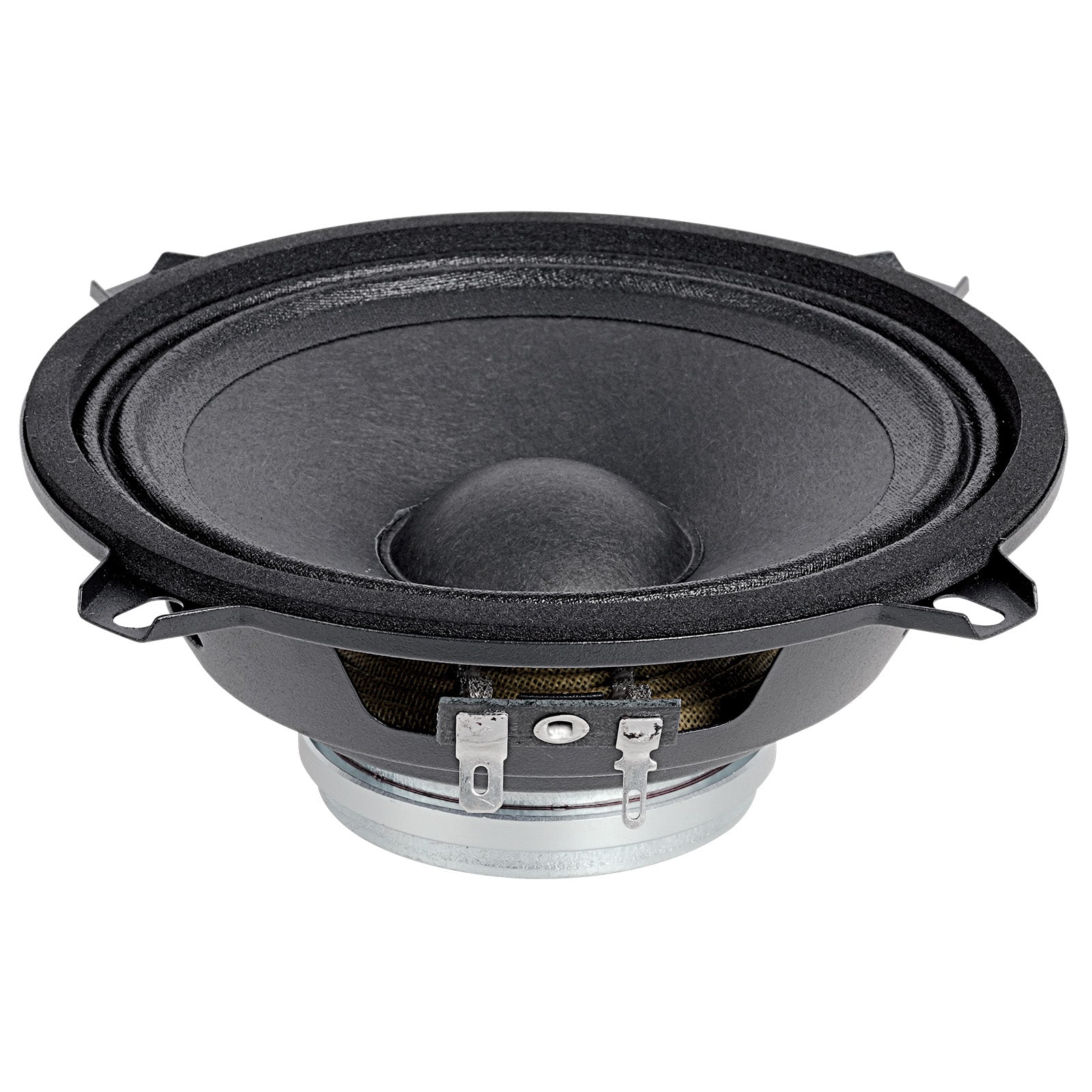

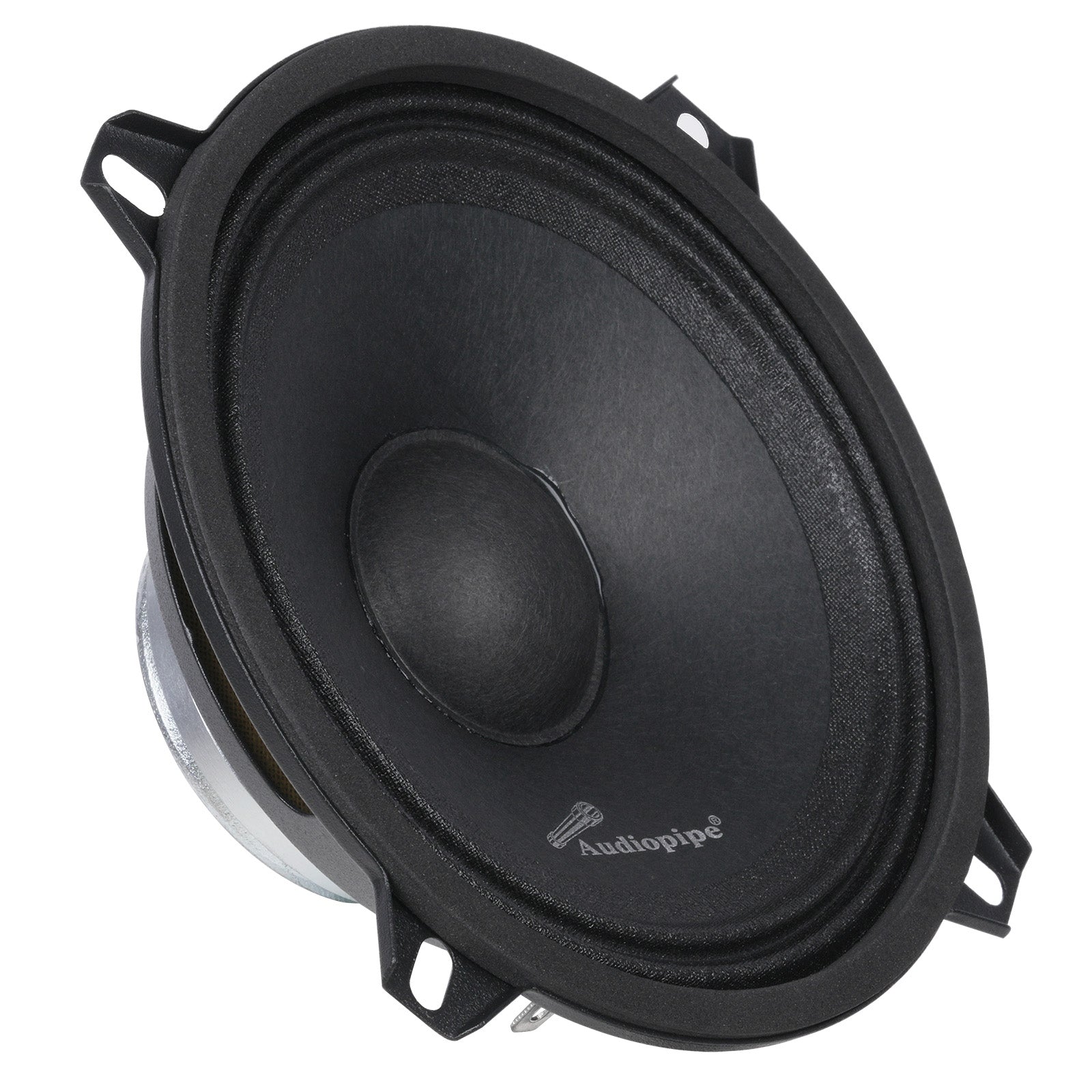

5.25" Low Mid Frequency Loudspeaker (APMB-5251ND-4)

• LOW MID-RANGE SERIES: The APMB-5251ND-4 features a cloth edge surround designed to enhance low-frequency performance. This innovative design maximizes mid-range clarity while delivering rich, powerful low tones.
• POWDER-COATED BLACK STEEL BASKET: Built with a durable powder-coated black steel basket, the APMB-5251ND-4 ensures excellent structural integrity. This design helps isolate internal air from external frequencies, enabling efficient operation with minimal interference for clean, precise sound reproduction.
• HIGH-QUALITY VOICE COIL: Equipped with a 1" high-temperature KSV voice coil, the APMB-5251ND-4 is engineered for improved heat dissipation and long-lasting performance.
• HIGH-FREQUENCY ENHANCING BULLET: Featuring a specially engineered high-frequency enhancing bullet, this loudspeaker extends high-frequency response without compromising low- and mid-range clarity, ensuring well-balanced, dynamic sound.
• EASY INSTALLATION: The APMB-5251ND-4 comes with pre-drilled mounting holes for hassle-free installation. Its compact size and mid-range frequency response make it ideal for enhancing audio quality in smaller enclosures.
• NEODYMIUM MAGNET: A high-performance neodymium magnet delivers strong power handling and superior sound performance in a compact form factor.
• PEAK POWER: 120 Watts (P.M.P.O.)
• CONTINUOUS POWER: 60 Watts (R.M.S.)
• FREQUENCY RESPONSE: 95Hz – 14KHz
• SENSITIVITY: 91dB
• MOUNTING DEPTH: 50mm (2”)
• IMPEDANCE: 4 Ohms

Description:

The APMB-5251ND-4 is a high-performance 5.25" low mid-frequency loudspeaker designed for exceptional clarity and impact. Its powder-coated black steel basket ensures durability while preventing interference from external frequencies, resulting in cleaner sound output. Featuring a high-temperature KSV voice coil with optimized ventilation, this speaker delivers consistent performance and reliability. Compact yet powerful, the APMB-5251ND-4 is an excellent choice for upgrading to balanced, high-quality mid-range sound.

APMB-5251ND-4-English/Spanish Product Manual
