APHD-6160-H2 - 6 Channel Full Range Class D Amplifier

Roll over image to zoom in

APHD-6160-H2 - 6 Channel Full Range Class D Amplifier

AudiopipeSKU: APHD-6160-H2

Share this product

Specifications
Reviews

Specifications

6 Channel Full Range Class D Amplifier

Full Range Class D Amplifier
Output Power (RMS) @1% 1Khz 14.V
Stereo @4ohms: 6x160W
Stereo @2ohms 6x27OW
Mono @4ohms: 3x550W
Frequency Response (-1dB): 10Hz~25KHz
Crossover Range High Pass: 20Hz~5KHz @12dB/OCT
Crossover Range Low Pass: 50Hz~5KHz @12dB/OCT
S/N Ratio (A wtg): >90dB
Input Sensitivity: 0.2~6V
Working Voltage: 9~16V

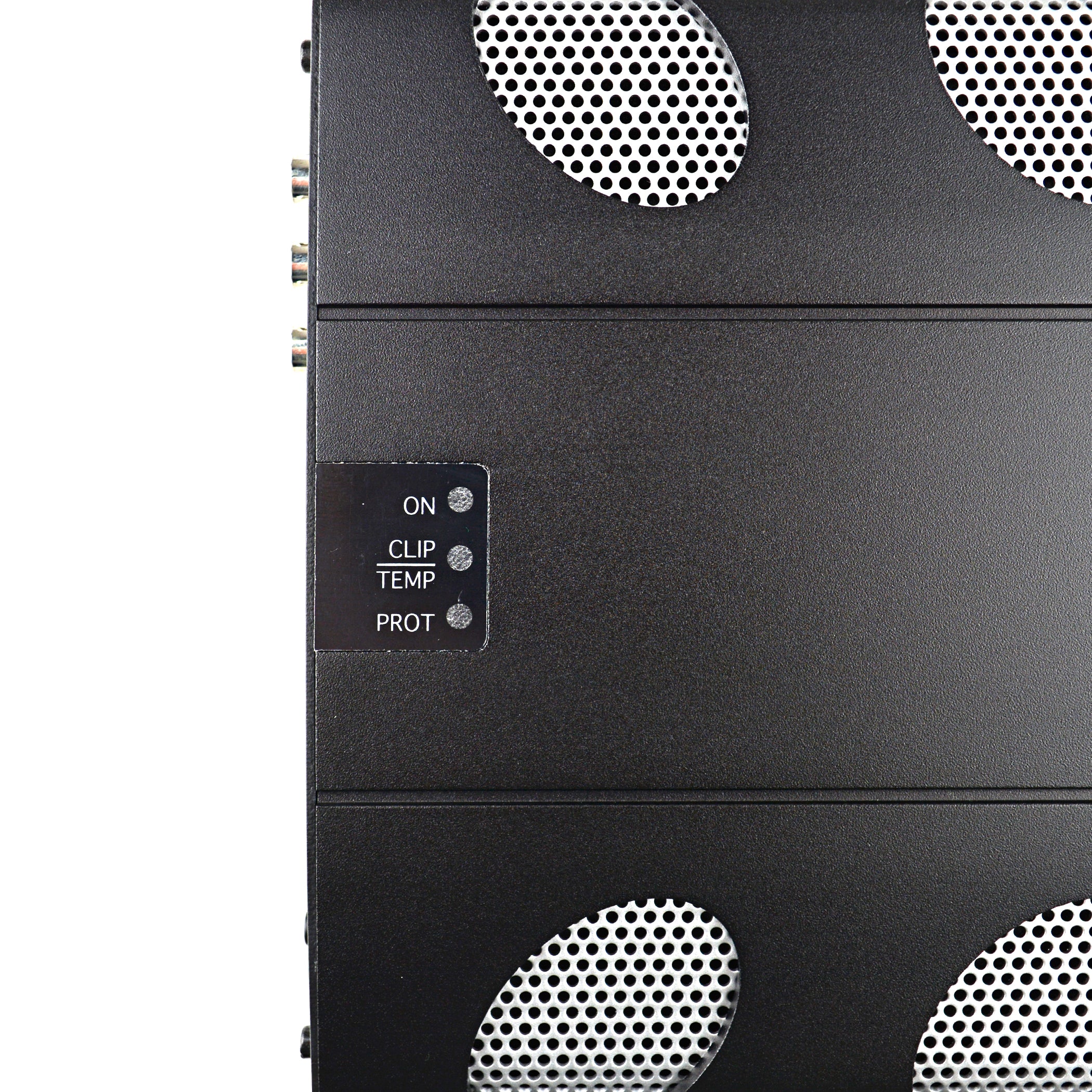

Built-in visual status monitor
Protection System: Short into Output / Supply Voltage high / low / Thermal Protection
Dimensions (L x W x H): 300 x 209 x 67 mm (11.8” x 8.2” 2.6’)
